Focke-Wulf (S) 39 = Fw 39
Type |
Two seat reconnaissance aircraft |
Engine |
1 Siemens Jupiter VI |
Dimensions |
|
Weights |
|
Performance |
Max. speed 265 km/h endurance 3 h range 600 km |
Type |
Werk.Nr |
Registration |
History |
|
98 |
D-1708, D-IQIM |
Tested at Lipetsk 1932. To Rechlin 1937 Modified to Fw 39B Damaged during training flight, scrapped |

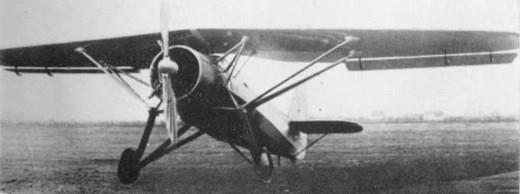

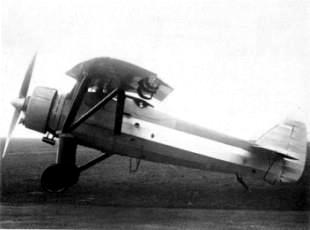

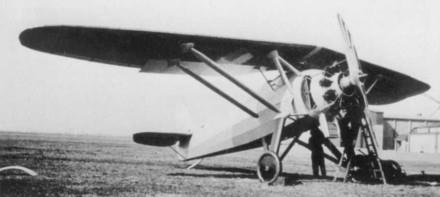

The first new design that required Kurt Tank“s attention was a former Albatros reconnaissance Aircraft project which now became the S39 later the Fw 39. The S 39 prototype was built shortly after Tank's arrival and the company's reorganisation. It was a highwing monoplane powered by an aircooled 510 hp Siemens Jupiter VI Engine wrapped in the stream-lined cowling invented by the National Advisory Committee for Aeronautics (NACA) in the US just four years earlier in 1927. It received the civilian registration D-1708 in 1932 but failed to perform satisfactorily despite Tank's best efforts to amend the original design. It was damaged during testing and scrapped.
