Type |

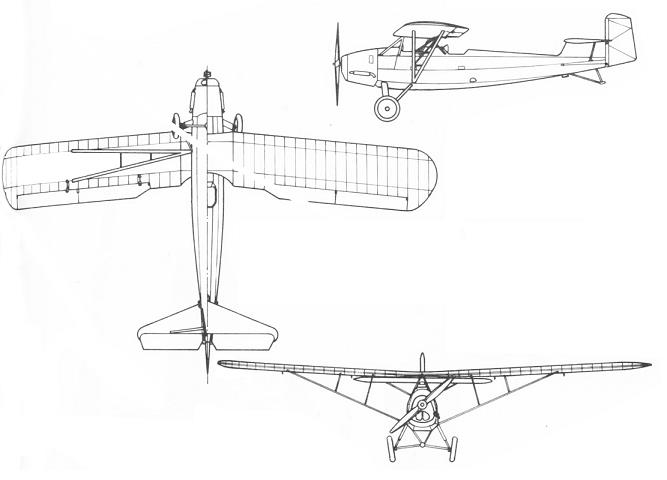

B Two seat trainer Land version |

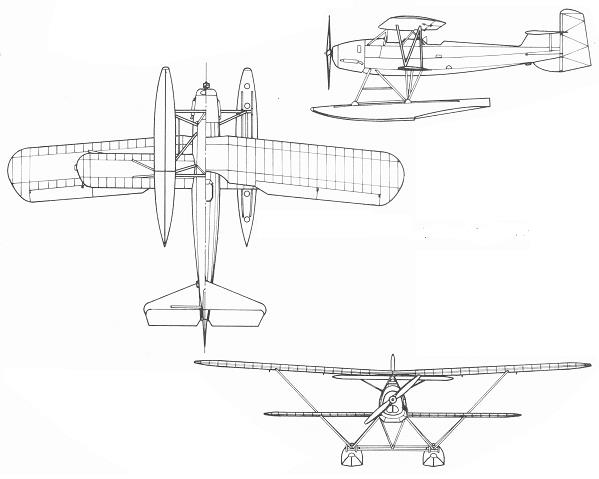

W Two seat seaplane trainer |
Engine |
1 Argus As 10C |
Dimensions |
Length 8.80 m, span 13.30 m, height 3.10 m, wingarea 22.20 m2, aspect ratio 7.97 |
Length 9.40 m, span 13.30 m, height 3.10 m, wingarea 31.40 m2, aspect ratio 7.97 |
Weights |
Empty 780 kg, fuel 160 kg, oil 20 kg, load (including pilot) 420 kg, flying weight 1200 kg, wingloading 54.05 kg/m2 |
Empty 965 kg, fuel 158 kg, oil 10 kg, load (including pilot) 385 kg, flying weight 1350 kg, wingloading 42.99 kg/m |
Performance |
Max. speed 210 km/h at sea level, cruising speed at sea level 195 km/h, climb 4.90 m/s, service ceiling 5000 m, range 680 km, endurance 3.5 h |
Max. speed 185 km/h at sea level, cruising speed at sea level 180 km/h, climb 3.10 m/s, service ceiling 4500 m, range 585 km, endurance 3.25 h |
Type |
Werk.Nr |
Registration |
History |
W |
124 |
D-2314 |
Built in Sept. 1932. To DVS. Sea plane |
B |
123 |
D-2291 |
To DVL e. V., Adlershof in July 1932 |
B |
176 |
D-2703, D-IDYP |
Made by Focke-Wulf. To DVS in Febr. 1934 |
B |
177 |
D-2704 |
|
B |
178 |
D-2705 |
Made by Focke-Wulf. To DVS in Febr. 1934 |
B |
179 |
D-2706 |
Made by Focke-Wulf. To DVS in Febr. 1934 |
B |
180 |
D-2707 |
Made by Focke-Wulf. To DVS in Febr. 1934 |
B |
181 |
D-2708, D-IDUQ |
Made by Focke-Wulf. To DVS in Febr. 1934 |
B |
182 |
D-2709, D-IDE |
Made by Focke-Wulf. To DVS in Febr. 1934 |
W |
|
D-2711 |
Made by Focke-Wulf. = Fw 55W |
