Type | First design 5-seat | Modified design |
Engine | 3 Maybach HS (Mb.IV) hp) Hull mounted |
4 × Maybach Mb.IVa Nacelle mounted |
Dimensions | Length, 23,88 m span, 33,2 m wingarea 257 m2 height: 7.6 m aspect ratio: 5:1 |
Length, 21,7 m span. 33,2 m wingarea 257 m2 |
Weights | Empty, 6,475 kg loaded, 9800 kg Fuel capacity: 2000 litres wing loading: 33 kg/m2 | Empty, 7278 kg loaded, 9158 kg |
Performance | Maximum speed: 105 km/h rate of climb: 0.83333 m/s | Speed, 130 km/h |
Type | Werk.Nr | Registration | History |

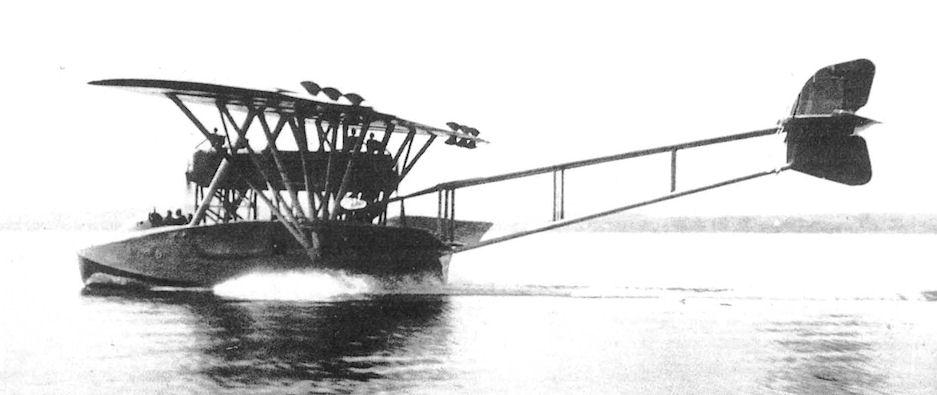

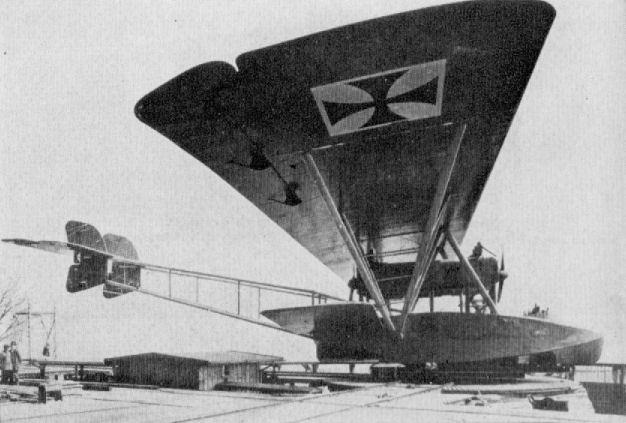

1433 | Construction began in December 1915, and the first flight was made on 30th June 1918. After its trial programme was completed this flying-boat was dismantled in order that resources might be devoted to the Rs III |
