Type |
Single seat fighter |
Engine |

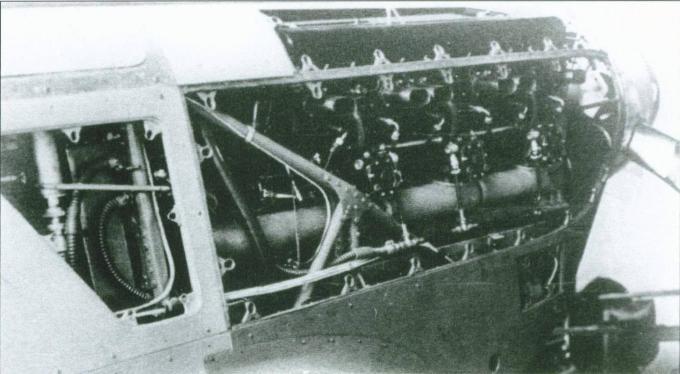

1 Hispano-Suiza HS 12Y-29 with a 3-bladed Hamilton Standard 3,2m or Ratier 251 3,1m on later ones |

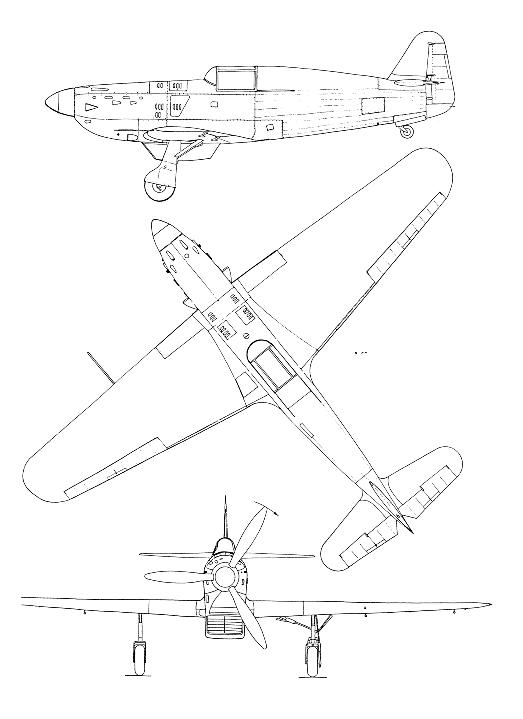

Dimensions |
Length 8,00 m , height 3,25 m , span 10,30 m , wing area 16,50 m2 , |
Weights |
Empty 2068 kg , loaded 2630 kg , fuel 330 l in wing tanks, oil 38 l. Radio: Telefunken f-u G VIIa, range of 60 km Sights: Collimateur Cretien E.T.Ae modelle 1933. |
Performance |
Max.. speed 527 km/h at 3600 m, 421 km/h at sea level, cruising speed 400 km/h , range 785 km, endurance 2 h 26 min.at cruising speed , 1 h 15 min. at max. speed , service ceiling 9400 m , climb initial climb speed: 14,3 m/s ,7 min climb to 5000m, landing speed 160 km/h, take off run 200 m |
Armament |
1 x 20mm HS.404, motorcannon with60 rounds , 2 x 7,92mm FN-Browning with 500 rounds per gun |
