Type |
1 + 3 seat sportplane |
Engine |
1 De Havilland Gipsy Six Series II |
Dimensions |
Length 7,77 m, height 2,24 m, span 12,04 m, wing area 17,09 m2 |
Weights |
Empty 789 kg, flying weight 1474 kg |
Performance |
Max. speed 280 km/h, cruising speed 241 km/h, range 1062 km, service ceiling 5180 m, rate of climb 5,2 m/sec. |
Type |
Werk.Nr |
Registration |
History |
|
K.65, x1085 |

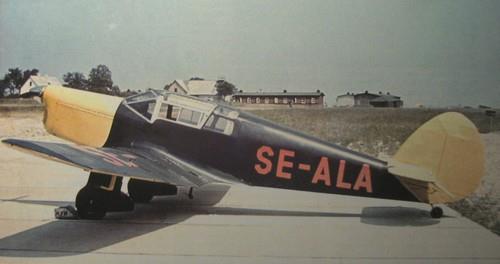

G-AEZJ, PH-ATH, D-IXWD, KE+CW, X1085, SE-ALA, G-AEZJ |
Captured in 1940 when Germany overran the Netherlands. Incidently, the German Civil Registration of D-IXWD is only a temporary ferry registration for its flight to Sweden. |
|
K.70 |
G-AFBO |
Used by the Attaché in Berlin. That one was seized at Tempelhof in September 1939 |
|
K.93 |
G-AFIM, 5F+OK, DP+OI, D-IWSR, X1086, SE-ALZ |
Made in 1938.Abandoned at Le Bourget in late May 1940 and sized by the Germans. Coded 5F+OK, DP+OI Used by Aufkl.Gr.(H)14 (later DP+OI, later D-IWSR) it went to Sweden in 1942 as SE-ALZ and crashed during Aug.45. |
Built by Percival Aircraft of Gravesend and Luton (after 1936 when Percival Aircraft became a Limited Company), the 'K-Series' Vega Gull was a development of their earlier 'D-Series' Gull. The main changes from the earlier design were the provision of an additional fourth seat, dual controls and flaps. The fuselage was widened and the wingspan increased. Increases in drag were compensated for by reducing parasitic drag from exterior fittings such as hinges and actuation horns. This work was largely attributable to the arrival at Percivals of the talented aircraft designer Arthur Bage.Thus, the Vega Gull was very nearly as fast as the more svelte Gull Six. Payload, range and utility were all much improved. The prototype G-AEAB first flew from Gravesend in November 1935.
The Vega Gull retained the de Havilland Gipsy Six air-cooled inline engine introduced in the D.3 Gull Six of 1934. Most examples were fitted with the optional DH Gipsy Six Series II engine in conjunction with the DH-PD30 VP airscrew. The final Mk II examples were fitted with a curved windscreen (the earlier examples had a multi-faceted windscreen of flat panels) similar in appearance to the early marks of the Proctor
A Vega Gull named "Messenger" was used by Beryl Markham on her transatlantic flight 4–5 September 1936, the first solo east-to-west crossing by a woman.
Two early production Vega Gulls were entered into the Schlesinger Race from England to Johannesburg, South Africa. C.W.A. Scott and Giles Guthrie flying Vega Gull G-AEKE was the only finisher landing at Rand Airport on 1 October 1936.[5] The aircraft had left Portsmouth 52 hours 56 minutes 48 seconds earlier. With the publicity of the win, Percival set up a production line at larger premises at Luton. The new type was an immediate success with production running to 90, the last production aircraft having its maiden flight on 27 July 1939.
The Vega Gull was widely used by British and Commonwealth aviators during the later years of the "Golden Age" of record-setting aviation during the 1930s. Alex Henshaw, Jim Mollison, Amy Johnson, Beryl Markham, C.W.A. Scott and others, won races and broke records to South Africa, South America, Australia and New Zealand, to name but a few.
In addition to civil orders, 15 were ordered by the Air Ministry. Of these, 11 served with 24 Squadron Royal Air Force on communications duties and two were issued to the Fleet Air Arm, which was yet to come under Admiralty control. The remaining two were used by the British air attachés in Buenos Aires and Lisbon. A third aircraft for use by the British air attaché in Berlin was seized by the Germans at the outbreak of the Second World War. It remains unclear whether the Luftwaffe subsequently used this machine.
