| Type |
Medium bomber , crew 5 (one pilot, navigator/bombardier, turret gunner/engineer, radio operator/waist gunner, tail gunner) |
| Engine |
2 Wright R-2600-92 Twin Cyclone |
| Dimensions |

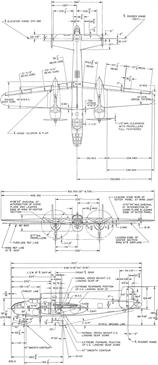

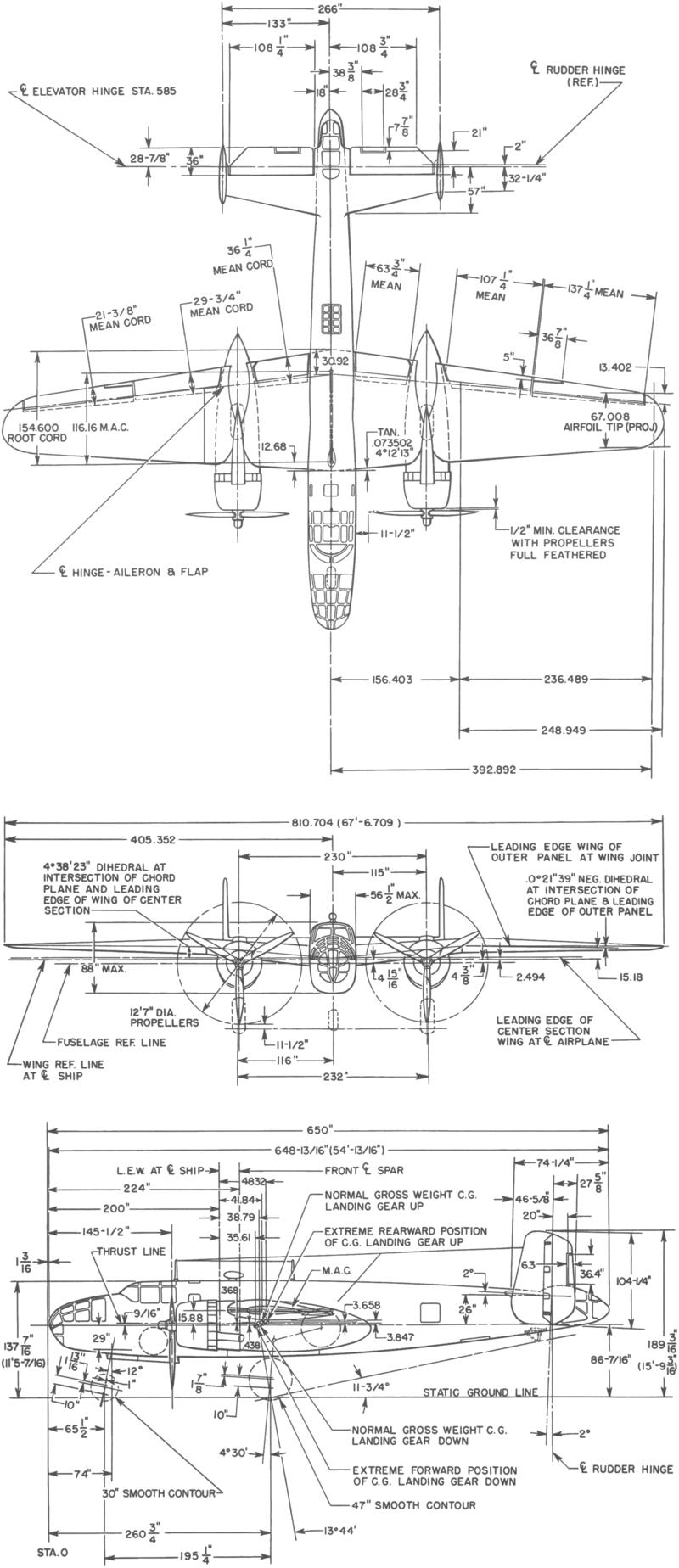

Length 16,13 m , height 4,98 m , span 20,60 m , wing area 57,4 m2 , Airfoil: root: NACA 23017; tip: NACA 4409R |
| Weights |
Empty 8836 kg, loaded , max. take off weight 15876 kg |
| Performance |
Max.. speed 438 km/h at 4000 m, cruising speed 370 km/h , range 2170 km, endurance , service ceiling 7400 m , climb |
| Armament |
|
| Type |
Werk.Nr |
Registration |
History |
|
|
|
|
The US Army Air Corps issued a specification for a medium bomber in March 1939 that was capable of carrying a payload of 2,400 lb (1,100 kg) over 1,200 mi (1,900 km) at 300 mph (480 km/h)[3] North American Aviation (NAA) used its NA-40B design to develop the NA-62, which competed for the medium bomber contract. No YB-25 was available for prototype service tests. In September 1939, the Air Corps ordered the NA-62 into production as the B-25, along with the other new Air Corps medium bomber, the Martin B-26 Marauder "off the drawing board".
Early into B-25 production, NAA incorporated a significant redesign to the wing dihedral. The first nine aircraft had a constant-dihedral, meaning the wing had a consistent, upward angle from the fuselage to the wingtip. This design caused stability problems. "Flattening" the outer wing panels by giving them a slight anhedral angle just outboard of the engine nacelles nullified the problem and gave the B-25 its gull wing configuration. Less noticeable changes during this period included an increase in the size of the tail fins and a decrease in their inward tilt at their tops.
NAA continued design and development in 1940 and 1941. Both the B-25A and B-25B series entered USAAF service. The B-25B was operational in 1942. Combat requirements led to further developments. Before the year was over, NAA was producing the B-25C and B-25D series at different plants. Also in 1942, the manufacturer began design work on the cannon-armed B-25G series. The NA-100 of 1943 and 1944 was an interim armament development at the Kansas City complex known as the B-25D2. Similar armament upgrades by U.S-based commercial modification centers involved about half of the B-25G series. Further development led to the B-25H, B-25J, and B-25J2. The gunship design concept dates to late 1942 and NAA sent a field technical representative to the SWPA. The factory-produced B-25G entered production during the NA-96 order followed by the redesigned B-25H gunship. The B-25J reverted to the bomber role, but it, too, could be outfitted as a strafer.
NAA manufactured the greatest number of aircraft in World War II, the first time a company had produced trainers, bombers, and fighters simultaneously (the AT-6/SNJ Texan/Harvard, B-25 Mitchell, and the P-51 Mustang).[5] It produced B-25s at both its Inglewood main plant and an additional 6,608 aircraft at its Kansas City, Kansas, plant at Fairfax Airport.
