Type | Two seat trainer |
Engine | 1 Wright R-975-E3 Whirlwind with a 2-bladed Hamilton Standard 2D30 dia. 2,74 m |

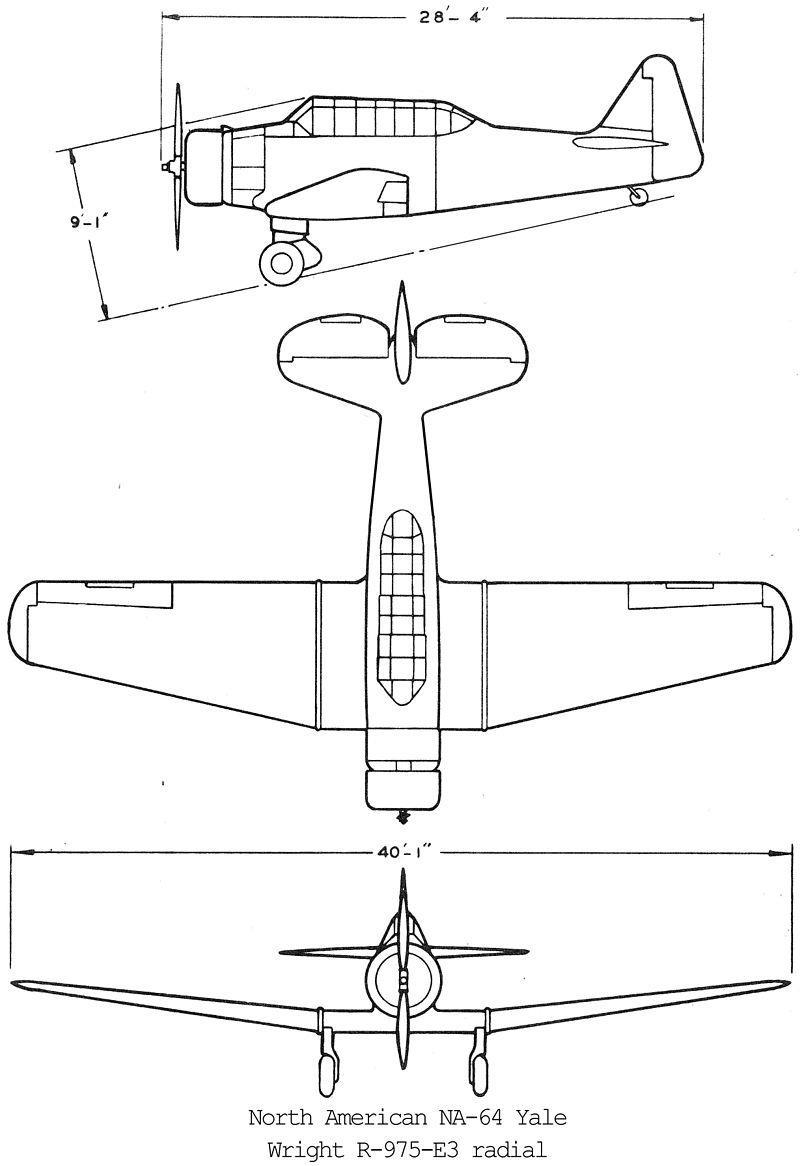

Dimensions | Length 8,64 m , height 2,70 m , span 12,228 m , wing area 22,42 m2 , |
Weights | Empty 1057 kg, loaded 2040 kg, max. take off weight fuel 394 l, oil 36 l |
Performance | Max.. speed 267 km/h at sea level , cruising speed 235 km/h , range 1175 km at cruising speed, endurance 5 h at cruising speed , service ceiling 5350 m , climb 5,7 m/sec. time to 3300 m 11,36 min. |
Armament | Light bombs |
