| Type |
Single seat motorglider |
| Engine |
1 Saroléa Albatros with 2-bladed Szomanski wooden fixed pitch propeller |
| Dimensions |
Length 6 m , height 1,45 m , span 12,2 m , wing area 13,2 m2 , |
| Weights |
Empty 207 kg, loaded 325 kg , max. take off weight fuel 40 l, oil 4,5 l |
| Performance |
Max.. speed 152 km/h , cruising speed 130 km/h , max. allowed speed 180 km/h range , endurance 4 h , service ceiling 5200 m , climb 2,5 m/sec., rate of sink1,5 m/sec. at 70 km/h (Engine stopped) |
| Type |
Werk.Nr |
Registration |
History |
|
|
|
|
Affiliated to D.W.L., the Warsztaty Szybowcowe – glider workshops produced the Bᾳk, designed by Antoni Kocjan, to compete with the ITS-8 which had been designed to a specification from the I.T.S.M. (Instytut Techniki Szybownictwa i Motoszybownictwa – institute of gliding and motor-gliding techniques), for a cheap ultra-light aircraft suitable for converting trained glider pilots to powered flying. The Bąk I was an immediate success with excellent performance and good handling qualities, passing I.T.L. (Instytut Techniczny Lotnictwa – Technical aviation institute) and airworthiness tests without problems, also proving to have relatively good gliding performance.

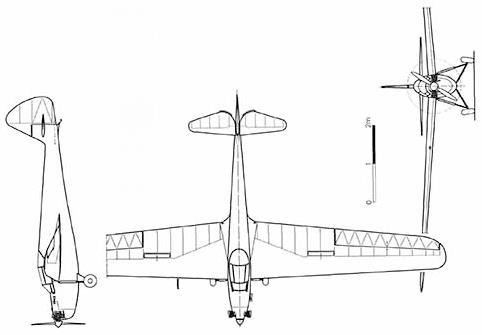

The Bąk was built primarily of wood with plywood in a semi-monocoque fuselage and cantilevered single spar wooden wings, with plywood skinned leading edge torsion boxes and wing roots, mid set on the fuselage with marked dihedral. The tail unit comprised a fin, with rudder, integral with the fuselage and a cantilever ply and fabric covered all-flying tailplane, all control surfaces were statically balanced and mounted on ball bearings. Various engines of 16 to 32 hp could be fitted, with the majority of the production Bąk II's was the 32 hp Sarolea Albatros engine driving a twoblade fixed pitch Szomański propeller.
Designer of the Bąk, Antoni Kocjan, became part of the Polish Underground resistance and was killed in the Warsaw Uprising.
The Bąk won a FAI world record for duration of flight in a Class D motorglider. The aircraft flew 5hr 24 minute on less than 19 l of fuel. It also won a record for altitude, reaching (4,595 m).
