Type
Engine 2 900 mm diameter Lorin-Rohr ramjets + 4 solid-fuel rockets (1000 kg of thrust each)
Dimensions Length 8,15 m , height  ,  span  8,9 m, wing area  20 m2 ,
Weights Empty , loaded  , max. take off weight
Performance Max.. speed 1000 km/h , cruising speed  , range , endurance  , service ceiling   , climb
Armament 2 30 mm MK 108

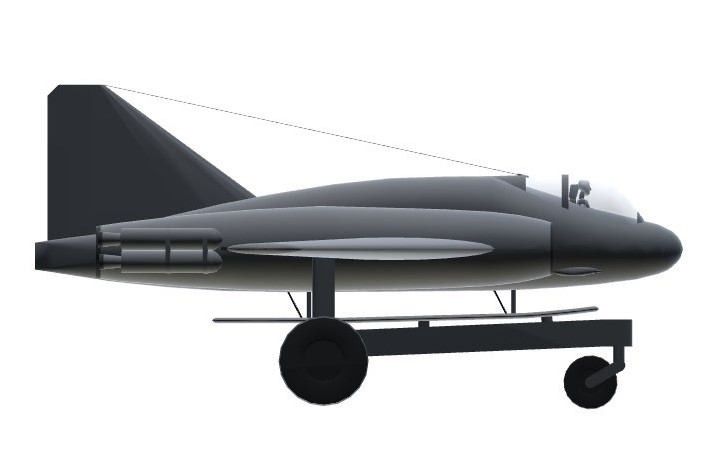

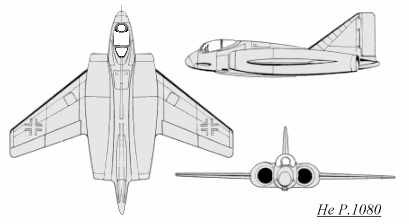

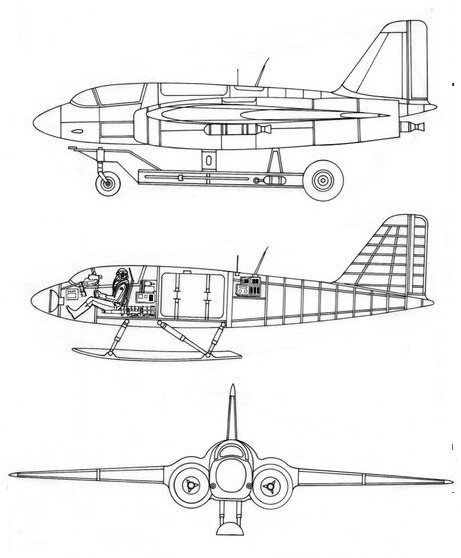

Heinkel designed this ramjet-powered fighter after receiving ramjet data from DFS near the end of WWII. Two 900 mm (2' 11.5") diameter Lorin-Rohr ramjets were mounted on each side of the fuselage with their outer surfaces faired into the wing, so that the large surface area of the ramjets were exposed to the airstream for cooling purposes. To save design time, the swept-back wing with the elevon controls were based on those of the He P.1078, but a single orthodox fin and rudder was used instead of wingtip anhedral. The cockpit was located in the forward section of the fuselage, along with a radar unit and two MK 108 30mm cannon. The fuel tanks were located in the rear of the fuselage. Take-off power was accomplished with the aid of four solid-fuel rockets of 1000 kg (2200 lbs) of thrust each. An undercarriage that could be jettisoned was used on take-off and landing was done on an extendable skid.
