Type |
a 2-seat reconnaissance and trainer |
b 2-seat reconnaissance , light bomber and trainer |
Engine |
1 BMW VI 6.0 Z with 2-bladed wooden fixed pitch, right rotation |
1 BMW VI 7.3 Z with 2-bladed wooden fixed pitch, right rotation |
Dimensions |
Length 10,0 m , height 3,60 m , span upper 11,50 m, lower 10,00 m , wing area 34,60 m2 , wheel width 2,20 m |
Weights |
Empty 1725 kg, loaded 2610 kg, max. take off weight |
Empty 1780 kg, loaded 2745 kg , max. take off weight |
Performance |
Max.. speed 250 km/h at sea level, 245 km/h at 2000 m, 240 km/h at 4000 m , cruising speed 210 km/h at 2000 m, 240 km/h at 4000 m , landing speed 105 km/h, range 1200 km, endurance , service ceiling 5000 m , climb to 1000 m 2,8 min., to 2000 m 6,2 min. , to 4000 m 19,4 min., start runway 200 m, landing run 290 m over 15 m |
Max.. speed 260 km/h at sea level, 255 km/h at 4000 m cruising speed 220 km/h, landing speed 115 km/h, range 1200 km, endurance 5,5 h , service ceiling 5500 m, climb to 1000 m 2,4 min., to 2000 m 5,3 min., to 4000 m 15,4 min., ., start runway 180 m, landing run 290 m over 15 m |
Armament |
1 7,92 mm MG 15 movable |
1 MG (08/15) 17 (7,92 mm) with 500 rounds ,1 MG 15 (7,92 mm) movable with750 rounds , bombload 200 kg |
Type |
MO4, experimental |
MO5 fighter and reconnaissance |
Engine |
1 BMW 16 |

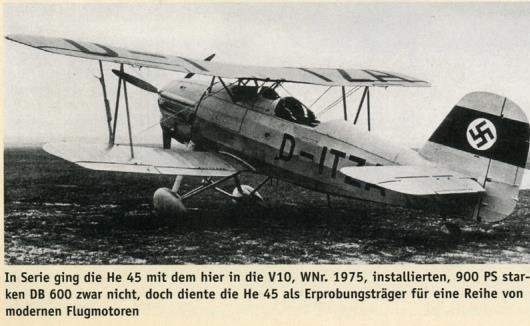

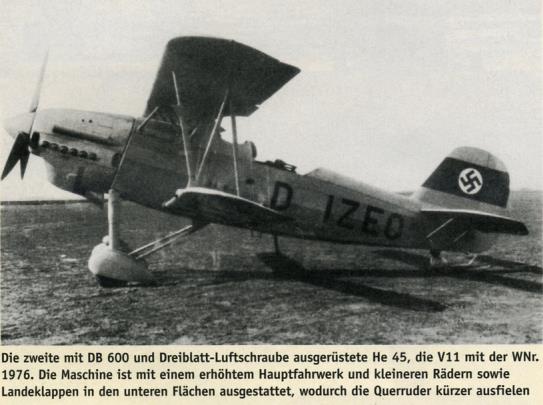

1 Daimler Benx DB 600A |
Dimensions |
Length 10,0 m , height 3,60 m , span upper 11,50 m, lower 10,00 m , wing area 34,60 m2 , wheel width 2,20 m |
Weights |
Empty , loaded 2860 kg , max. take off weight |
Empty , loaded 3050 kg, max. take off weight |
Performance |
Max.. speed 255 km/h , cruising speed , range , endurance , service ceiling , climb |
Max.. speed 362 km/h , cruising speed , range , endurance , service ceiling , climb
|
Armament |
|
