Type | Two seat sportplane |
Engine | 1 Anzani 3Y with a 2-blade Reed dural propeller |
Dimensions | Length 5,2 m , height 1,8 m , span 6,0 m , wing area 11,40 m2 , |
Weights | Empty 200 kg, loaded 400 kg, max. take off weight |
Performance | Max.. speed 150 km/h , cruising speed 135 km/h , landing speed 55 km/h, range 600 km, endurance , service ceiling 2600 m , climb |
Type | Werk.Nr | Registration | History |

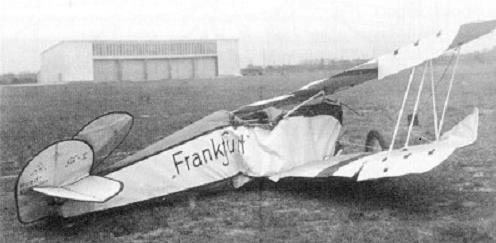

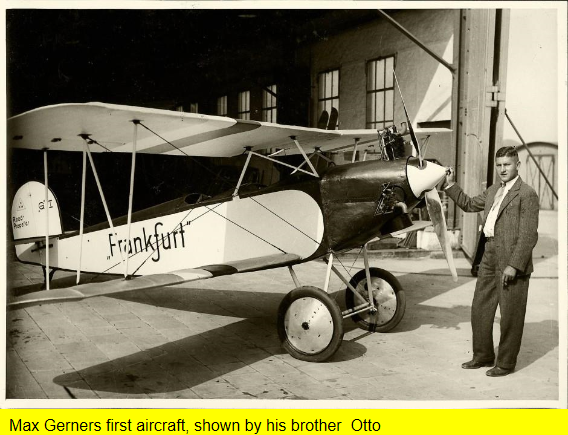

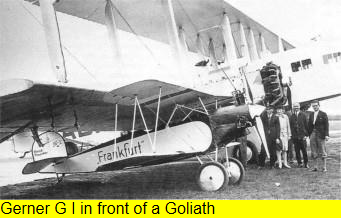

"Frankfurt". Changed to an ABC engine in 1929. Crashed on September 25 1939 |
