Designed by Paul Klages in 1930 as a passenger plane with accomodation for 1 pilot and 3 passengers
The Focke-Wulf A 33 Sperber (German: "Sparrowhawk") was a small airliner produced in Germany in the early 1930s. It was a high-wing cantilever monoplane of conventional design, resembling a scaled-down version of the contemporaneous A 32 design. Only three examples were built, each purchased for air taxi duties with separate German airlines. One eventually found its way briefly into the fleet of Deutsche Luft Hansa in 1937.
| Type |
1 + 3 transport plane |
| Engine |
1 Walter Mars |
| Dimensions |
Length 9.58 m, height 3.00 m, span 12.00 m, wing area 22 m2 |
| Weights |
Empty 670 kg, fuel 120 kg, flying weight 1120 kg |
| Performance |
Max. speed 165 km/h, cruising speed 145 km/h at 2000 m, landing speed 75 km/h, service ceiling 3000 m, range 550 km |
| Type |
Werk.Nr |
Registration |
History |
|
91 |

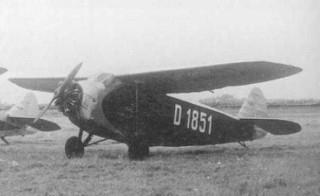

D-1851 |
To the Norddeutsche Luftverkehr AG in May 1930 |
|
97 |
D-1931, D-ONUT´ |
To the Luftverkehrsgesellschaft mbH, Wilhelmshafen-Rüstringen in July 1933. To DLH 1937, out of service 1938. |
|
115 |

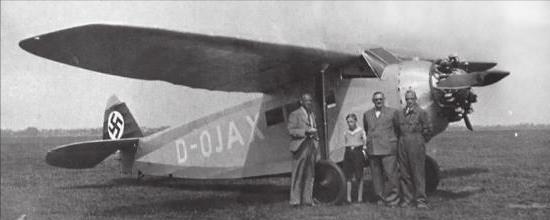

D-2153, D-OJAX |
To Baubehörde Hamburg, Abt. Vermessungsgewesen in Aug- 1931 |
