Type |
F 4-seat bomber |
G 4-seat bomber |
Engine |
2 BMW VId |
2 BMW VIU with 4-bladed fixed-pitch wooden propellers |
Dimensions |

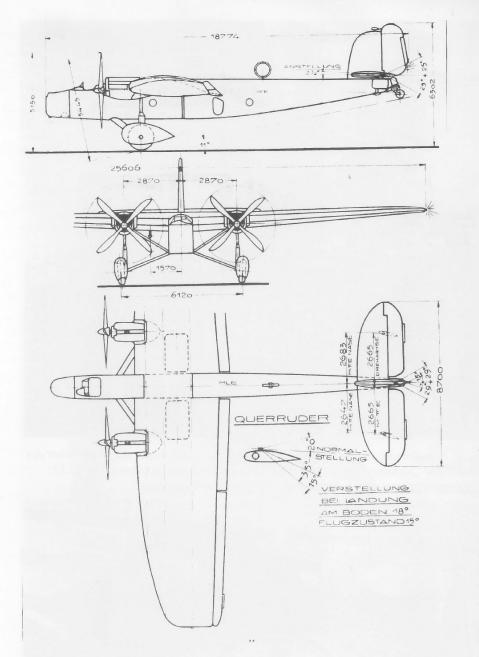

Length 18,8 m , height 5,4 m , span 25,6 m , wing area 106,6 m2 , |
Weights |
Empty , loaded , max. take off weight |
Empty 5600 kg, loaded 8750 kg, max. take off weight 9200 kg
|
Performance |
Max.. speed , cruising speed , range , endurance , service ceiling , climb |
Max.. speed 260 km/h , cruising speed 210 km/h , range 1350 km at 187 km/h and 2200 m, endurance 7 h 30 min., service ceiling 4200 m , climb 4,5 m/sec., time to 1000 m 4 min. |
Armament |

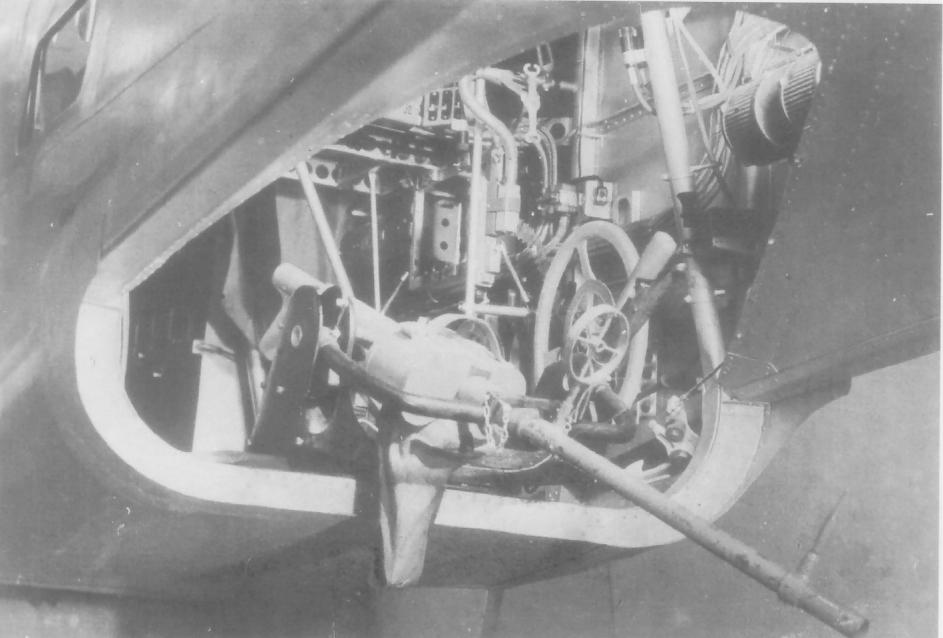

3 7.92 mm MG 15 machine guns (nose, dorsal and ventral positions) Bombs: 1,000 kg of bombs carried internally. |
