Type |
Do Cs II 1 + 5 passenger carrying flying boat |
Do Delphin I 2+ 6 passenger carrying flying boat |
Do Delphin I 2 + 6 passenger carrying flying boat |
Engine |
1 BMW IIIa |
1 BMW IIIa |
1 Isotto Fraschini A 10 |
Dimensions |

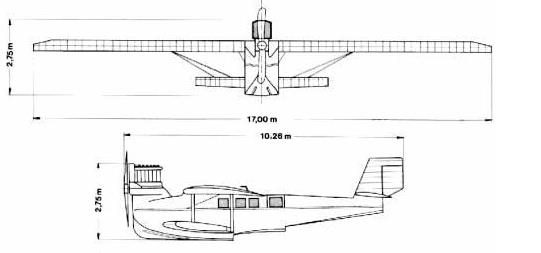

Length 10.25 m, height 2.75 m, span 17.00 m, wing area 47.00 m2 |

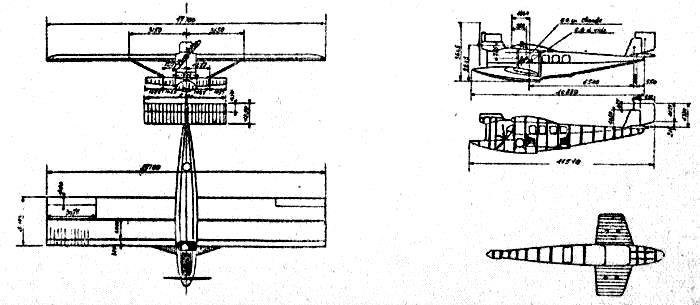

Length 11.50 m, height 3.10 m, span 17.10 m, wing area 51.30 m2, cabin: length 2.65 m - height 1.60 m - width 1.25 m |
Weights |
Empty 1350 kg, load 650 kg, flying weight 2000 kg |
Empty 1600 kg, load 600, fuel 200 kg,oil 15 kg kg, flying weight 2200 kg |
|
Performance |
Max. speed 150 km/h, cruising speed 120 km/h, service ceiling 4000 m, range 450 km |
Max. speed 125km/h, cruising speed 110 km/h, service ceiling 4000 m, range 660 km |
|
Type |
Werk.Nr |
Registration |
History |
Cs II, Delphin I, Do L Bas |
21 |
A-6055 |
Built in 1920 at Seemoos and Rohrschach. First flight 24/11 1920 (Pilot Lesch). Modified with a longer bow after a landing mishap, named Delphin I after this change. Sold to the US Navy in 1921 |
Delphin I |
25 |
|
Built in 1921 at Seemoos. Modified with an even longer bow. Sold to Fa. Kawasaki Dockyard Co. Ltd., Kobe/Japan. Delivered with 1 Rolls-Royce Eagle |
Delphin I |
26 |
|
Built in 1921 - 24 at Marina di Pisa, Italy. Tested with an Isotto Fraschini A 10 |
Delphin I, Delphin II |
27 |
|
Built in 1921 - 24 at Marina di Pisa, Italy. Delivered back to Seemoos, equipped with 1 Rolls-Royce Falcon as a Delphin II (New WerkNr. 110 ? ).First flight 15/2 1924. Used by the Bodensee Aero Lloyd. Crashed at Lindau (Pilot Stroebel) |
