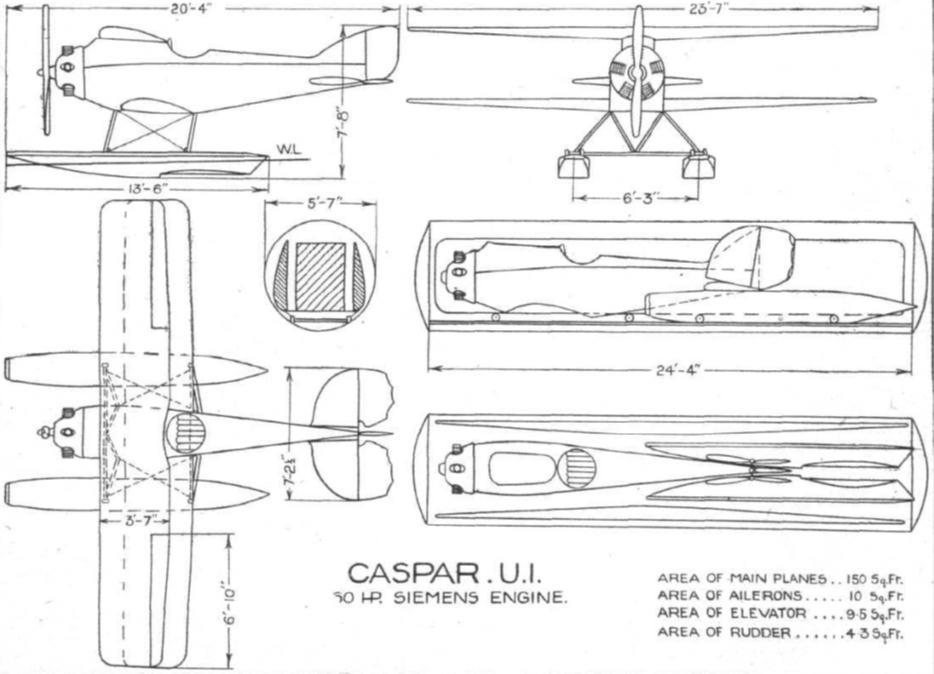

Type | Single seat reconnaissance floatplane based on submarines |
Engine | 1 Siemens Sh 4 |
Dimensions | Length 6.2 m, height 2.59 m, span 7.2 m wing area 14 m2 |
Weights | Empty 360 kg, crew 80 kg, fuel and oil 44 kg, load 88 kg, flying weight 572 kg |
Performance | Max. speed at sea level 145 km/h, at 1000 m 142 km/h, at 2000 m 138 km/h, at 3000 m 134 km/h, climb to 1000 m 6 min., to 2000 m 15 min. 34 sec., to 3000 m 34 min. 52 sec., cruising speed 120 km/h at sea level, landing speed 60 km/h, range 360 km, service ceiling 3000 m |
Type | Werk.Nr | Registration | History |
A6434 | US Navy . Mounted on truck for a parade, damaged beyond repair by low-hanging trees in July 1923 | ||
A6435 | US Navy | ||
D-293 | Tested by the Reichsmarine |
