Type | 3-seat medium bomber |
Engine | 2 Bristol Mercury XV |

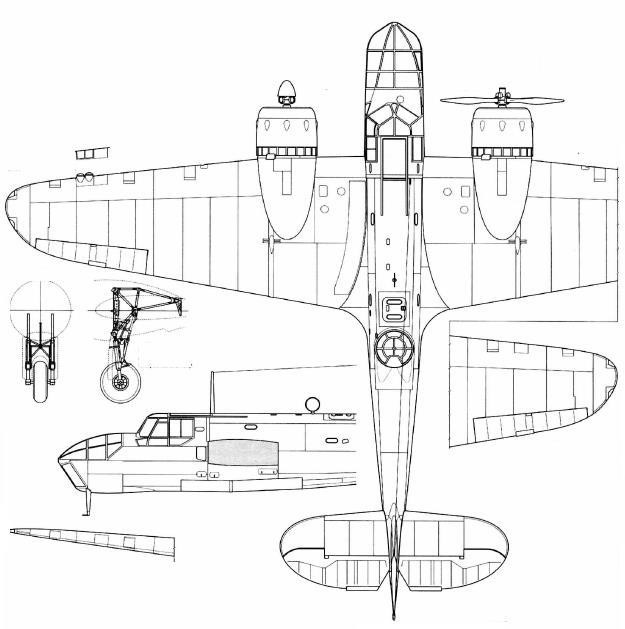

Dimensions | Length 12,98 m , height 3,00 m, span 17,17 m, wing area 43,57 m2 , |
Weights | Empty 4441 kg, loaded 6803 kg , max. take off weight |
Performance | Max.. speed 428 km/h , cruising speed 319 km/h , range 2350 km, endurance , service ceiling 8310 m , climb |
Armament | Five 7.7 mm machine guns (1 in the left wing console, 2 in the dorsal turret with mechanical control and 2 with remote control on a support under
the nose for firing at the rear hemisphere); up to 454 kg of bombs in the bomb bay and 145 kg on external loads.
|
Type | Werk.Nr | Registration | History |

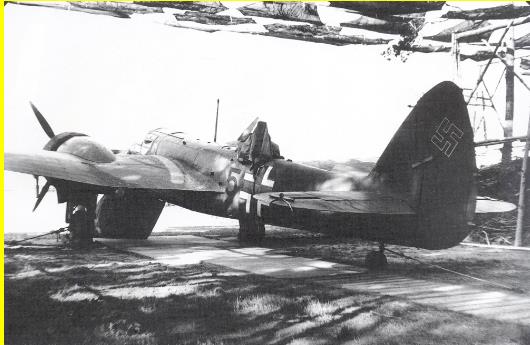

Mk IV | BG+GQ, | Former QY-K, 235 Sqn. | |

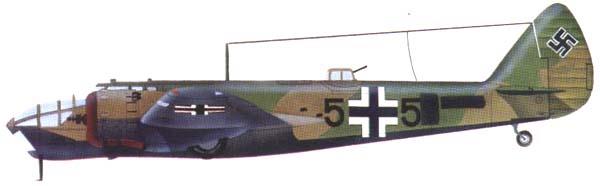

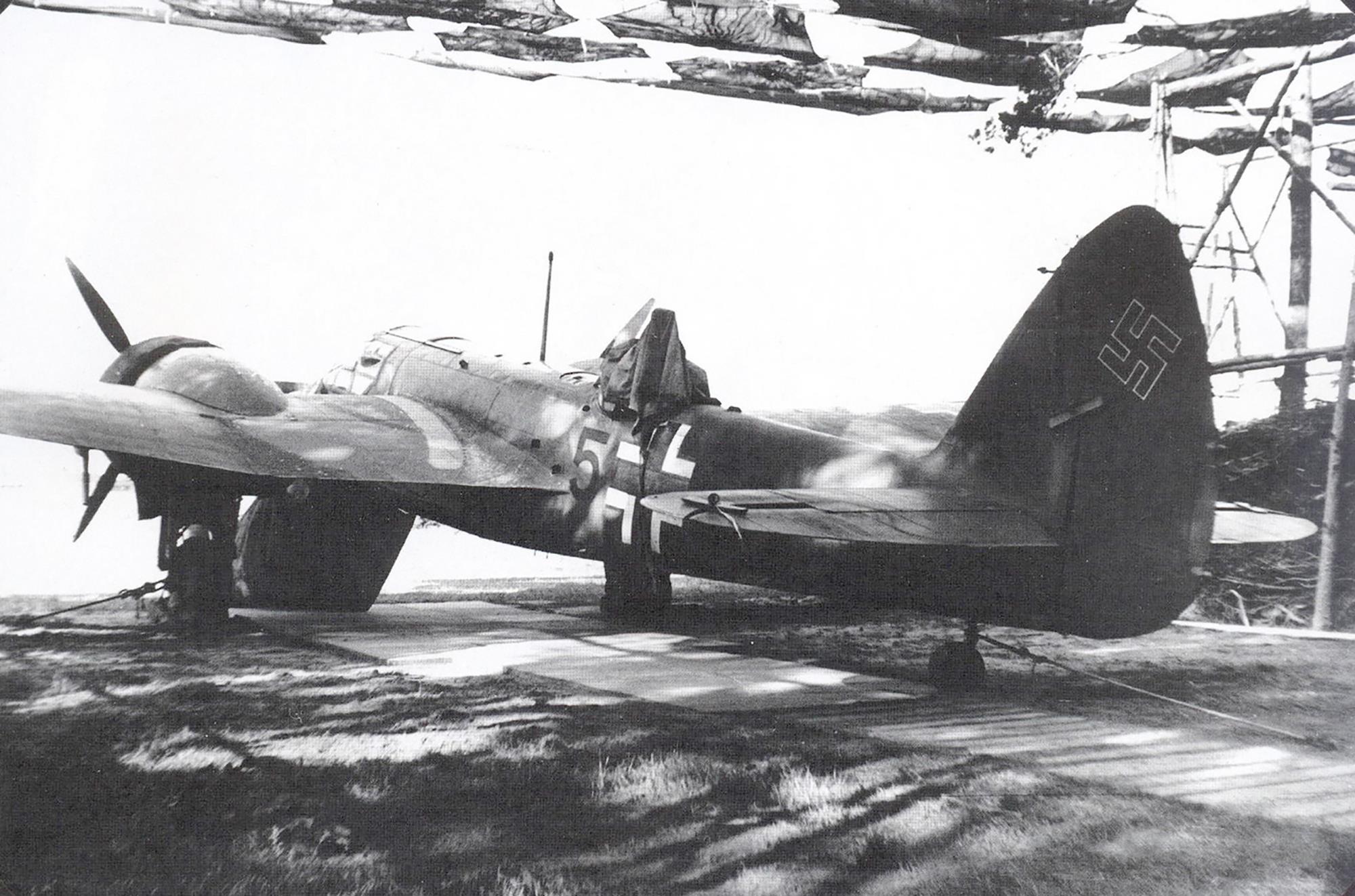

Mk IV | 5+5 | E.Stelle Rechlin |
