Type | 2-seat sportplane |
Engine | 1 Walter Mikron II with a 2-bladed wooden propeller |
Dimensions | Length 6,65 m , height , span 11,2 m , wing area 15,2 m2 , |
Weights | Empty 290 kg, loaded 490 kg, max. take off weight |
Performance | Max.. speed 150 km/h , cruising speed 125 km/h, range 470 km, endurance , service ceiling 3400 m , climb 21 min. to 2000 m |
Type | Werk.Nr | Registration | History |

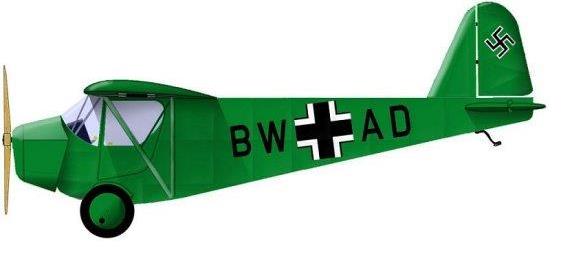

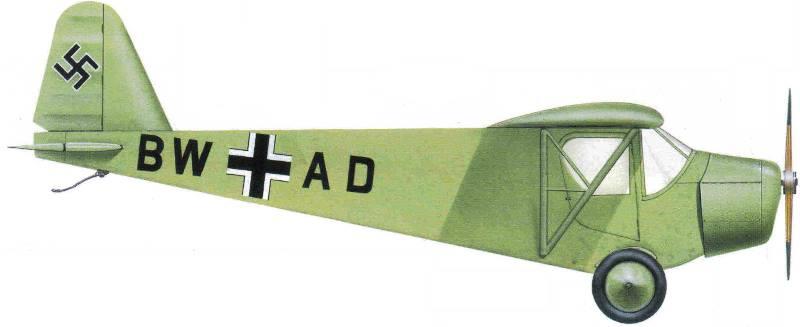

BW+AD | Schule/FAR 24 used in 1940 |
