Type |
Single seat fighter |
Engine |

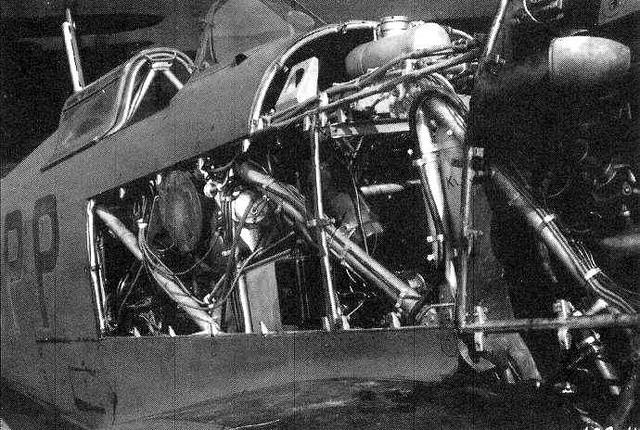

1 Avia (Hispano-Suiza) 12Ycrs with 2-bladed wooden fixed pitch propeller |
Dimensions |

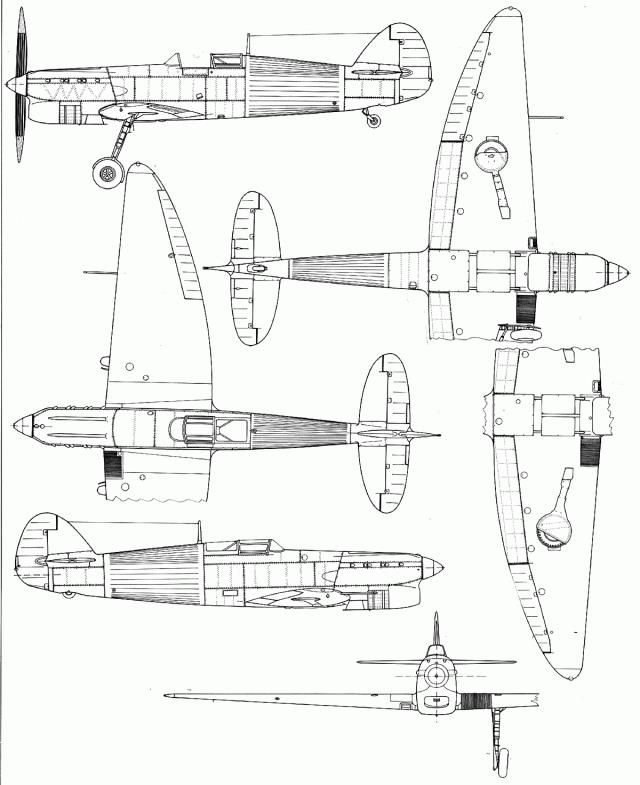

Length 8,5 m , height 1,6 m , span 10,85 m , wing area 17 m2 , |
Weights |
Empty 2063 kg, loaded , max. take off weight 2547 kg |
Performance |
Max.. speed 535 km/h at 4000 m , cruising speed 460 km/h, range 550 km, endurance , service ceiling 8500 m , climb 13,5 m/sec. |
Armament |
1 20 mm MG FF cannon , 2 7.92 mm Mk. 30 (Česká zbrojovka Strakonice) machine guns |
Type |
Werk.Nr |
Registration |
History |
135/1 |
|

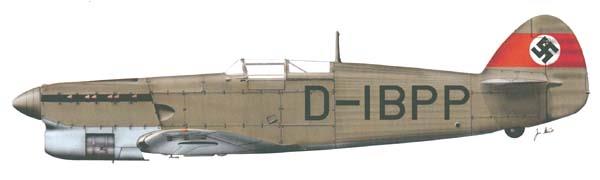

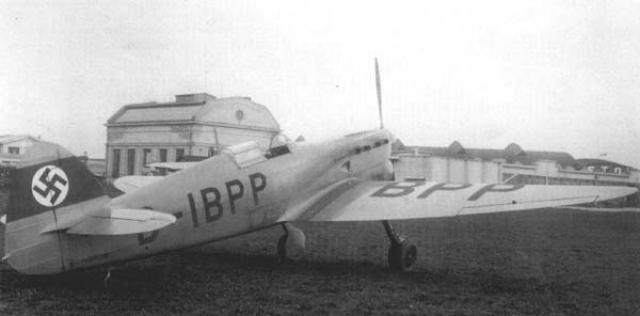

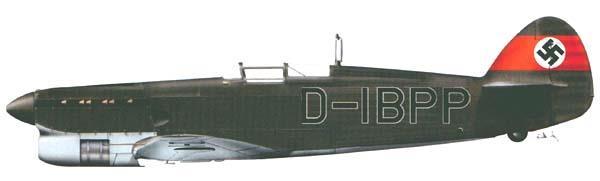

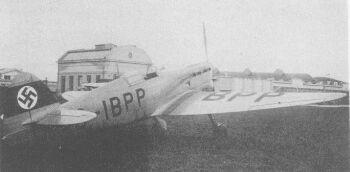

D-IBPP |
|

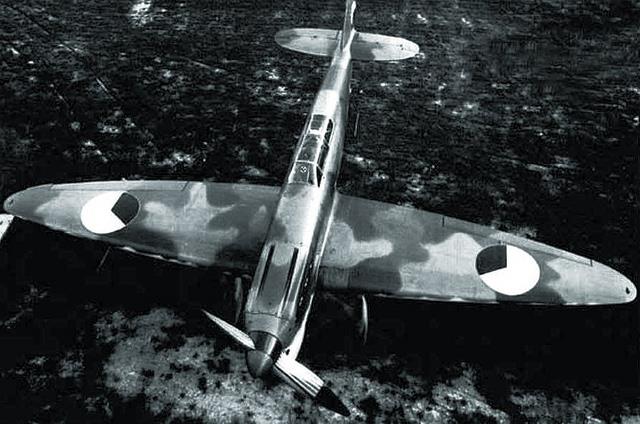

The Avia B.135 (RLM designation Av-135) was a Czechoslovak cantilever monoplane fighter aircraft. It was the production version of the Avia B.35 developed shortly before the war, based on the B.35/3 prototype but featuring a new all-metal wing.
The B.135/1 prototype attracted the attention of Bulgarian Air Force officers visiting the Avia plant, and a production contract for 12 aircraft and 62 engines was signed, as well as a license to allow an additional 50 airframes to be constructed by DAR as the DAR 11 Lyastovitsa (Bulgarian: "Лястовица"; "Swallow"). However, the DAR facilities proved to be incapable of producing the aircraft, and only the 12 Czech-built examples were ever made. Plans for further production were stopped by the RLM, which also interrupted engine deliveries after 35 units, and the Bulgarian Air Force was encouraged to purchase the Messerschmitt Bf 109 instead.
In service, the B.135s gave continual engine problems and were soon relegated to training roles. Four aircraft did, however, see combat on 30 March 1944 when they intercepted USAAF bomber formations encroaching on Bulgarian airspace after attacking Ploieşti. Some (Bulgarian) sources credit Lieutenant Yordan Ferdinandov with a B-24 Liberator kill that morning. According to Bílý all four Avias, led by Captain Atanasov, took part in the possible shooting down of a 4-engined bomber that day.[1] The downed aircraft crashed in the area of Tran and Breznik according to the log of Lieutenant Yordan Ferdinandov.
