Type | 2+ 6 seat airliner |
Engine | 2 Mercedes D IV a 275 hp |
Dimensions | Length 10,80 m, height 4,50 m,span 27,30 m, wingarea 75,71 m2 |
Weights | Empty 2700m kg, fuel 510 kg, oil 51 kg, crew 160 kg, payload 680 kg,flying weight 4101 kg, wing load 54,16 kg/m2 |

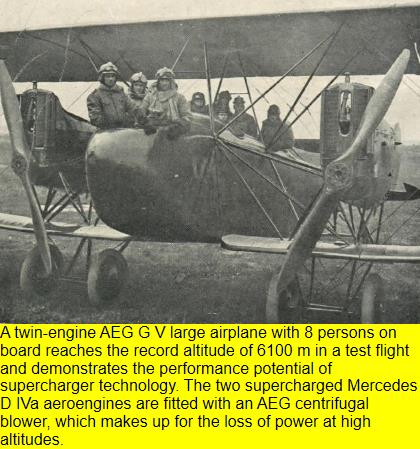

Performance | Max. speed 145 km/h at 1520 m, cruising speed 125 km/h at 1520 m, 2,70 m/sec. up to 1000 m, 10,3 min. to 1520 m, 23,4 min. to 2740 m, service ceiling 4000 m, with compressor 6100 m, range 750 km, endurance 6 h, landing speed 118 km/h |
Type | Werk.Nr | Registration | History |
A | A | DLR 2 | DLR 1919 - 1920 |
8500 | Military. Sold to Sweden, crashed during deliver flight 28th of March 1919. Three killed | ||
8502 | Military Sold to Sweden, emergency landing in Denmark during delivery flight 28th of March 1919.. Arrived to Sweden 2nd of April 1919 | ||
9504 | Military. Sold to Sweden, emergency landing in Denmark during delivery flight 28th of March 1919.. Arrived to Sweden 2nd of April 1919 | ||
9506 | Military. Sold to Sweden | ||
9508 | Military. Sold to Sweden | ||
9510 | Military. Sold to Sweden | ||
9512 | Military. Sold to Sweden |
