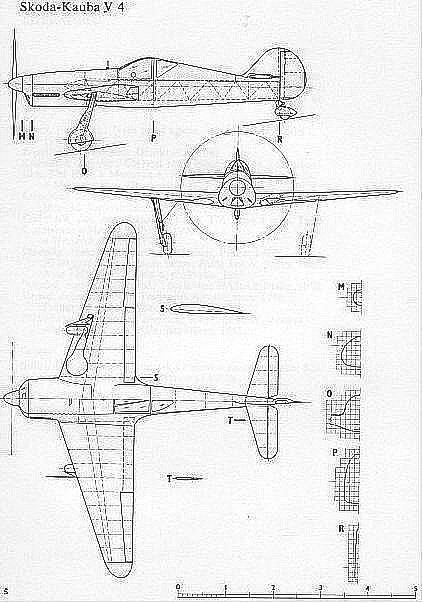

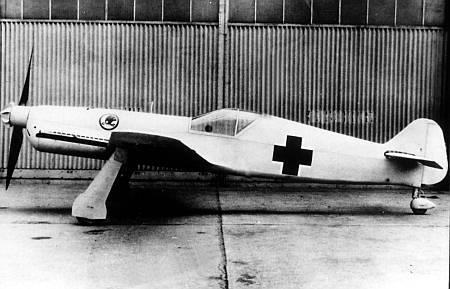

The SK V4, was a single-seat fighter trainer powered by a 240 hp Argus As 10C-3 eight-cylinder inverted-Vee air-cooled engine. Featuring exceptionally clean lines, the SK V4 was a low-wing cantilever monoplane with a tailwheel undercarriage, the wide-track main members of which retracted inwards. Provision was made for the mounting of a single 7,9-mm MG 17 machine gun, an electrically-actuated variable-incidence tailplane was provided, and the structure comprised a one-piece wooden wing built around a single box spar, and a welded steel-tube fuselage with plywood skinning.
.In early 1944 the RLM gave Kauba a go ahead with a development of Sk 257 to a single-seat training aircraft for fighter training based on the the SK.V4 .

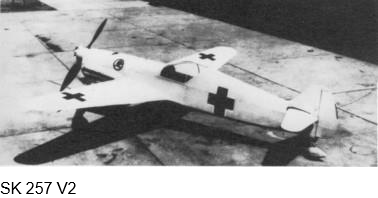

THe Sk 257 was an aerodynamically clean , low-wing with retractable landing gear in mixed construction , the tail wheel was not retractable. The fuselage consisted of a steel tube construction which was covered with shells made of plywood . The wing was a two-piece all-wood construction with a box beam and split flaps between ailerons and fuselage.
The tail was also an all-wood construction , and the tailplane was electrically adjustable. Only the rudder were fabric covered .
The main wheels was drawn electrically inward into the wings . The engine used later in the series production was an air-cooled 12 cylinder V-engine Argus 410 , 485 hp. Production location in Trencin, Slovakia was decided . The prototype testing was done on the air base Biskupice in Poland. While the first prototype with the Argus As 10c equipped with only 240 hp starting power , showed very good performance. The first machines of the zero series also had the Argus As 10c, were poorly finished and so showed large manufacturing defect that it was decided to cancel production for the time being , to remedy the deficiencies . This happened in the autumn of 1944. Until then, five pre-series aircraft were built . At a later restart of production, did not occur . The built prototypes and preproduction machines were eventually scrapped.
Type |
SK V-4 |
SK 257 |
Engine |
1 Argus As 10C-3 |
1 Argus As 410 |
Dimensions |
Length 5,6 m, height , span 7,6 m wing area 8,4 m2 |
Length 7,1 m, span 7,6 m |
Weights |
Empty 1020 kg, flying weight 1250 kg |
Empty 1030 kg |
Performance |
Max. speed 420 km/h at altitude, 385 km/h at sea level, initial climb 10,2 m/sec., servuce ceiling 7500 m, range 930 km at a speed of 314 km/h, endurance 2,94 hr |
Max. speed 350 km/h |
Type |
Werk.Nr |
Registration |
History |
|
|

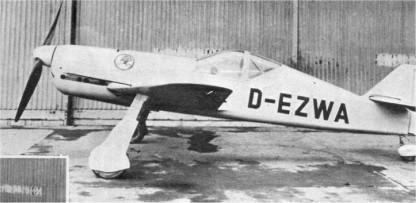

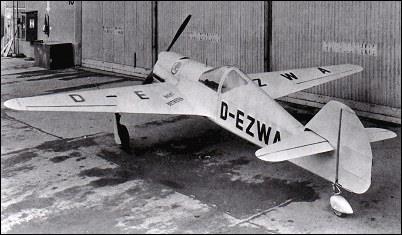

D-EZWA |
Aesthetically extremely attractive. the SK V4 possessed exceptional qualities, and from this design was evolved the SK 257 single-seat fighter trainer. |
