| Type |
|
| Engine |
1 Haacke HFM 2a |
| Dimensions |
Length 5.00 m, height 2.00 m, span 7.00 m, wingarea 11.00 m2, aspect ratio 4.5 |
| Weights |
Empty 170.0 kg, fuel 14.5 kg, oil 2.5 kg, crew 75 kg, flying weight 262.0 kg |
| Performance |
Max. speed at sea level 95 km/h, cruising speed at sea level 85 km/h, climb 1.65 m/sec., range 160 km, endurance 2.0 h, required runway for landing 25 m, landing speed 40 km/h |
| Type |
Werk.Nr |
Registration |
History |
|
|
|
|

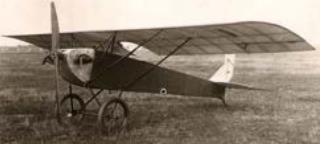

Refinements of the R I soon resulted in the R II in 1921, from the outside almost indistinguishable from its predecessor. A major improvement in the design was removable wings; entire aircraft could be stowed very compactly on a car trailer in order to make it roadworthy. The R II had such a good maneuverability, flight characteristics, and handling qualities that the company “Stahlwerk Mark” in Breslau agreed to start a series production of it and of all of its successors, based on an article published in Flugsport, repeated the above description and added a list of specifications. Of interest is the maximum weight of just 230 kg with an empty weight of 165 kg , leaving room only for light-weight pilots. A drawing of the machine very similar is given with a photo of the engine. . Therein, the total weight is given as 290 kg (639 lb) and the engine power as 22 kW
