| Type |
a 1 + 3 seat airliner |
b 1 + 4 seat airliner |
c Photo missions |
a 1 + 6 seat airliner |
| Engine |
1 Sh 11 |
1 Sh 12 |
1 Armstrong-Siddeley Lynx |
1) Wright Whirlwind 2) Armstrong-Siddeley Lynx 3) Walter Mars 4) Sh 12 5) Argus As 8 |
| Dimensions |
Length , height , span , wing area , |
Length 8.05 m, height 2.25 m, span 15.60 m, wingarea 24.80 m2 |
|
Length 9.0m, span 15.8 m |
| Weights |
Empty , loaded , max. take off weight |
Empty 600 kg, flying weight 1200 kg |
|
|
| Performance |
Max.. speed , cruising speed , range , endurance , service ceiling , climb |
Max. speed 145 km/h, cruising speed 130 km/h, service ceiling 2700 m, range 700 km |
|
|
| Type |
Werk.Nr |
Registration |
History |
| a |
27 |
D-947 |
Sh 11 engine. First flig/6 1926. In July 1927 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, Nürnberg ht 15in Nov. 1931. In June 1934 to DLV e.V., Berlin |
| b |
28 |
D-1118 |
In 1926 to Nordbayerische Verkehrsflug, Fürth. Chartered by Luftverkehr Thüringen . To Deutsche Verkehrsflug, Nürnberg in Nov. 1931. |
| b |
29 |

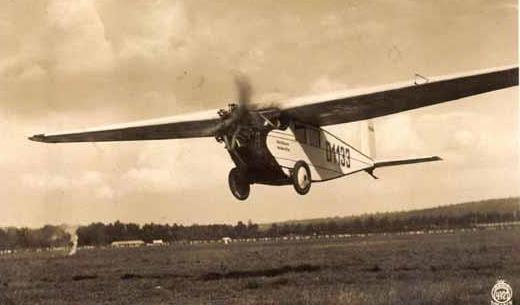

D-1133 |
In 1926 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, Nürnberg in Nov. 1931. |
| b |
30 |
D-1177 |
Sh 12 engine. In 1927 to Nordbayerische Verkehrsflug, Fürth Crashed 22/9 1927 at Rudolstadt/Schwarza. One passenger and one of the crew were killed |
| b |
365 = 32 |
D-1326 |
Sh 12 engine. Made by BFW. In Febr. 1928 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, Nürnberg in Nov. 1931. Crashed Oct. 1933 |
| b |
366 = 33 |
D-1333 |
Sh 12 engine. Made by BFW. In Febr. 1928 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, Nürnberg in Nov. 1931. |
| b |
367 = 34 |

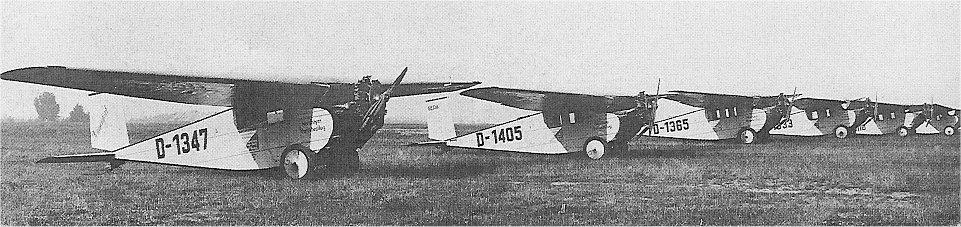

D-1347 |
Sh 12 engine. Made by BFW. In Febr. 1928 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, Nürnberg in Nov. 1931. |
| b |
368 |
D-1365 |
Sh 12 engine. Made by BFW. In Febr. 1928 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, Nürnberg in Nov. 1931. |
| b |
369 |

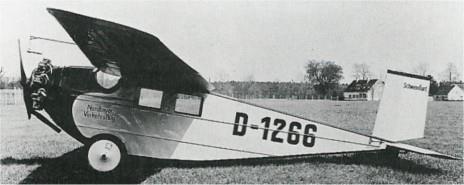

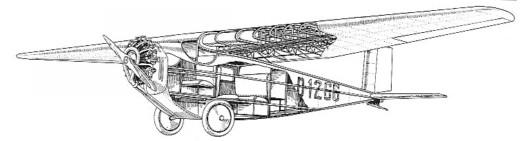

D-1266 |
Sh 12 engine. Made by BFW. In Febr. 1928 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, Nürnberg in Nov. 1931. |
| b |
370 |
D-1405 |
Sh 12 engine. Made by BFW. In June 1928 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, Nürnberg in Nov. 1931. |
| b |
413 |

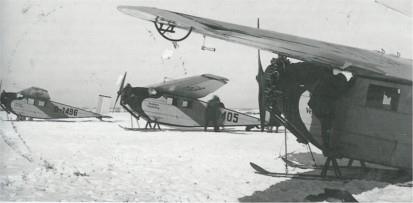

D-1496 |
Sh 12 engine. Made by BFW. In Aug. 1928 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, Nürnberg in Nov. 1931. |
| b |
420 |

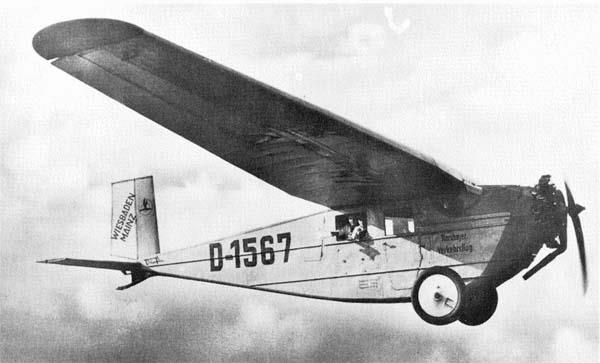

D-1567, D-ODES |
Sh 12 engine. Made by BFW. In Febr. 1929 to DVL e.V., Adlershof. To Deutsche Verkehrsflug, Nürnberg in Nov. 1931. |
| b |
419 |
D-1577 |
Sh 12 engine. In March 1929 to DVL e.V., Adlershof. Destroyed in Nov. 1930 |
| b |
414 |
D-1581 |
Sh 12 engine.In Aug. 1928 to Nordbayerische Verkehrsflug, Fürth. In March 1929 to DVL e.V., Adlershof. In Oct. 1932 to Deutsche Verkehrsflug, Nürnberg |
| b |
435 |
D-1643 |
Sh 12 engine. Made by BFW. In May 1929 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, Nürnberg in Nov. 1931. |

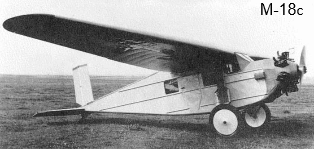

| c |
447 |
CH-144 |
Sold to Switzerland, used by Eidgenössischen Grundbuchamt Bern for survey flights. later used by the famous Swiss pilot Mittelholzer |
| c |
448 |
D-1860, CS-AAH |
In June 1930 registered to BFW AG, sold abroad in April 1931 with a Lynx engine |
| d |
469 |
D-1812 |
Wright Whirlwind engine. In April 1930 registered to BFW AG, from July 1930 to Nordbayerische Verkehrsflug, Fürth. In Sept. 1931 chartered by Münchner Fotogrammetri GmbH. Crashed Sept. 1931 in Mid Sweden |
| d |
470 |
|

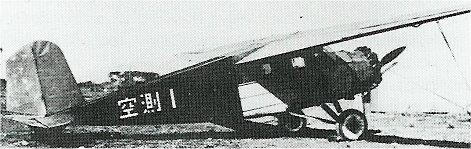

Sold to China in July 1931. Used at Hangchow for aerial survey |
| d |
476 |
CH-191, HB-IME |
Armstrong-Siddeley Lynx engine. Sold to Ad Astra / Swissair |
| d |
477 |
D-1847 |
Made by BFW. In May 1930 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, Nürnberg in Nov. 1931. Sh 12 engine, from Sept. 1930 Walter Mars |
| d |
478 |

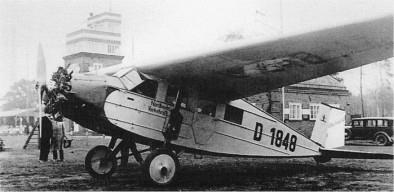

D-1848 |
Made by BFW. In May 1930 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, Nürnberg in Nov. 1931. Sh 12 engine, from Aug. 1930 Walter Mars. Destroyed in 1933 |
| d |
479 |
D-1861 |
"Krefeld". In June 1930 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, München in Nov. 1931. Sh 12 engine, from July. 1930 Walter Mars
"Krefeld". In June 1930 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, München in Nov. 1931. Sh 12 engine, from July. 1930 Walter Mars |
| d |
480 |

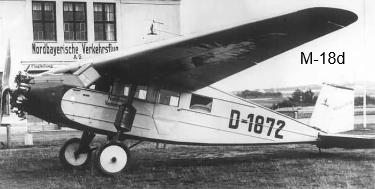

D-1872 |
In June 1930 to Nordbayerische Verkehrsflug, Fürth. To Deutsche Verkehrsflug, München in Nov. 1931. Sh 12 engine, from Aug. 1930 Walter Mars. Sold abroad in Nov. 1936 |
| d |
481 |
|
Wright Whirlwind engine Taken over by RLM in 1933/34 and used by the Deutschen Luftsportverbandes |
| d |
482 |

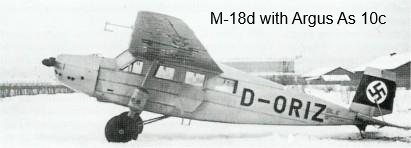

D-ORIZ |
Wright Whirlwind engine, from 1933/34 an Argus As 10c engine.Taken over by RLM in 1933/34 and used by the Deutschen Luftsportverbandes |
