Type |
a Two seat sportplane for aerobatics |
b Two seat sportplane for aerobatics |
|

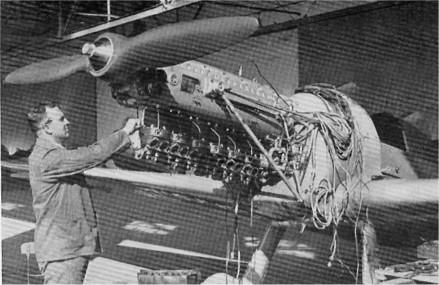

Engine |
1 Argus As 8b |
1 Sh 14a |
1 Argus As 17A |

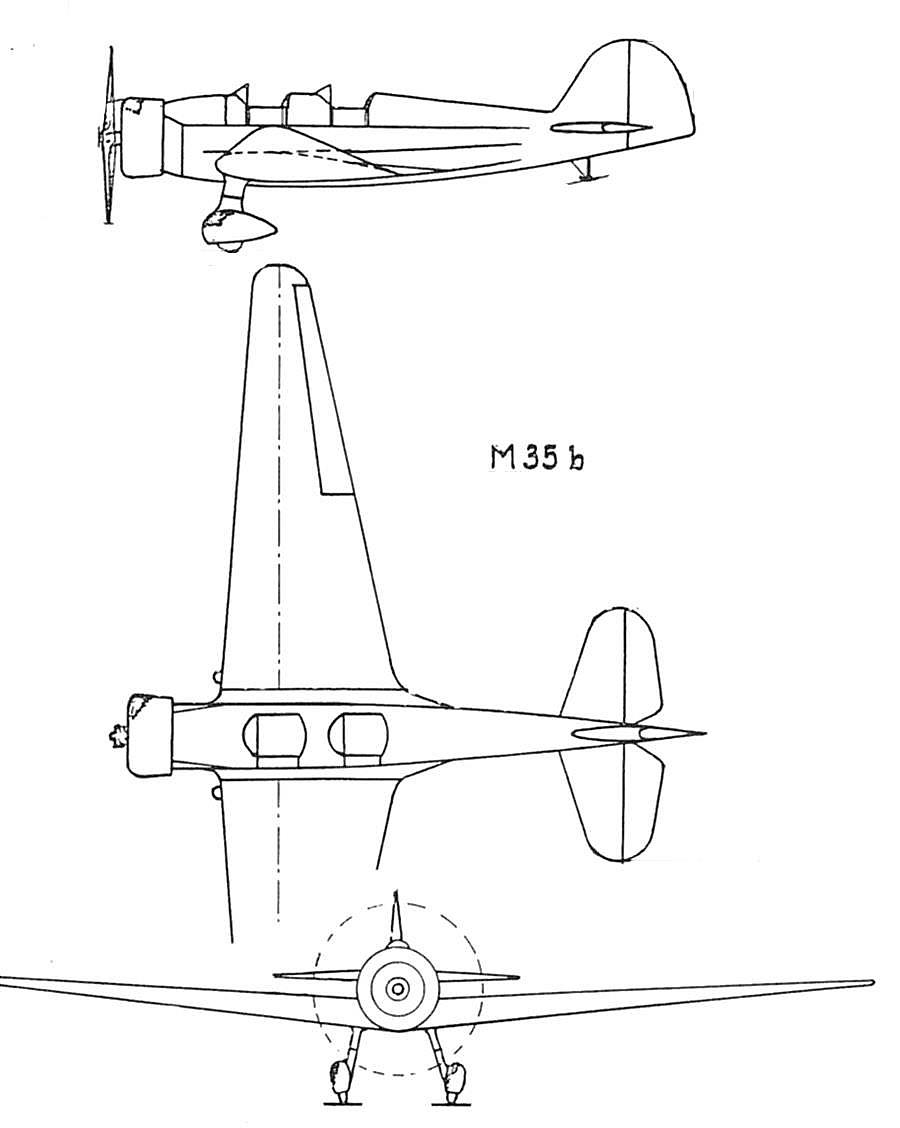

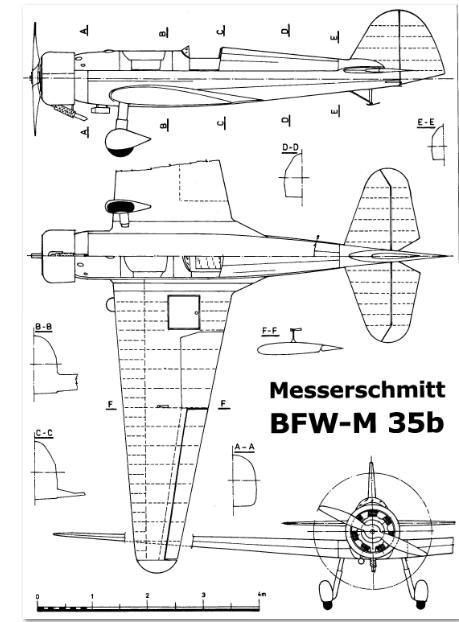

Dimensions |
Length 7.70 m, height 2.75 m, span 11.57 m, wingarea 17.00 m2 |
Length 7.48 m, height 2.75 m, span 11.57 m, wingarea 17.00 m2 |
|
Weights |
Empty 500 kg, fuel 70 kg, oil 9 kg, pilot 80 kg, payload 141 kg,flying weight 800 kg |
|
|
Performance |
Max. speed 218 km/h, cruising speed 185 km/h, climb to 1000 m 3.9 min., service ceiling 5000 m, range 740 km, landing speed 85 km/h |
Max. speed 230 km/h, cruising speed 195 km/h, climb to 1000 m 3.3 min., to 3000 m 12.8 min., service ceiling 5800 m, range 700 km, landing speed 85 km/h |
|
