Type | 3-seat fast bomber ( V1, V2 ) | 3-seat fast bomber ( V3 ) |
Engine | 2 Daimler-Benz DB 600D | 2 Daimler-Benz DB 600Aa |
Dimensions | Length 12,75 m, height 3,58 m, span 17,16 m, wing area | |
Weights | Empty 4400 kg, loaded 5800 kg | |
Performance | Max- speed 480 km/h at 3400 m, 426 km/h at sea level, max. cont. cruising speed 426 km/h at 3400 m, range 780 km, initial climb 9,0 m/sec. | |
Armament | 2 MG 15 + 10 x 50kg bombs, additional two 250kg externally as overload. |
Type | Werk.Nr | Registration | History |
V1 | 817 | D-AIXA | First flight 26/2 1937. Scrapped after trials |

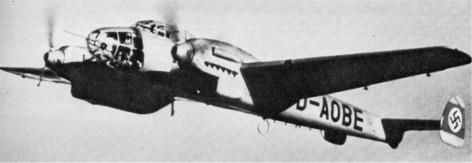

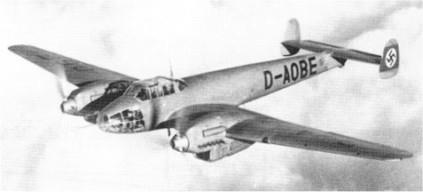

V2 | 818 | D-AOBE | First flight 31/10 1937. Used for towing the Me 163A at Augsburg . Also used for propaganda as the "Jaguar" |
V3 | 819 | D-AOVI | First flight 7/7 1938. Delivered to Rechlin |
V4 - V5 | Not finished, parts were used in the Bf 110C production |
