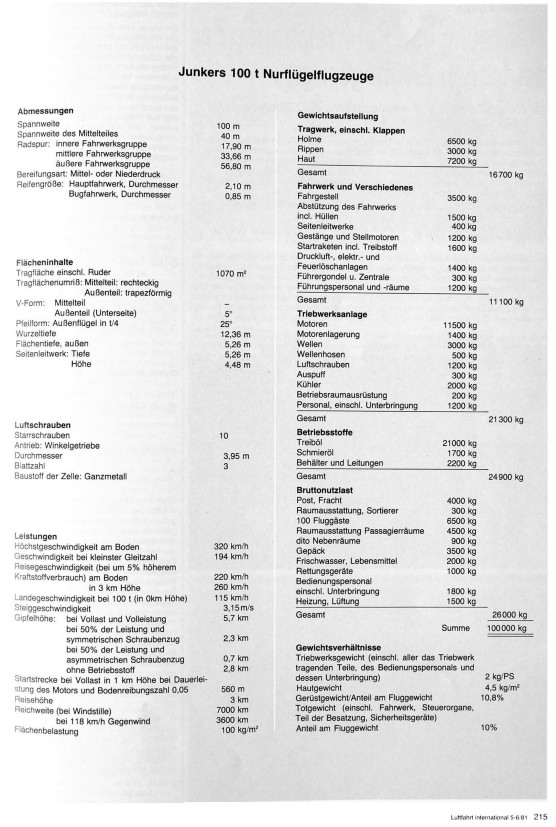

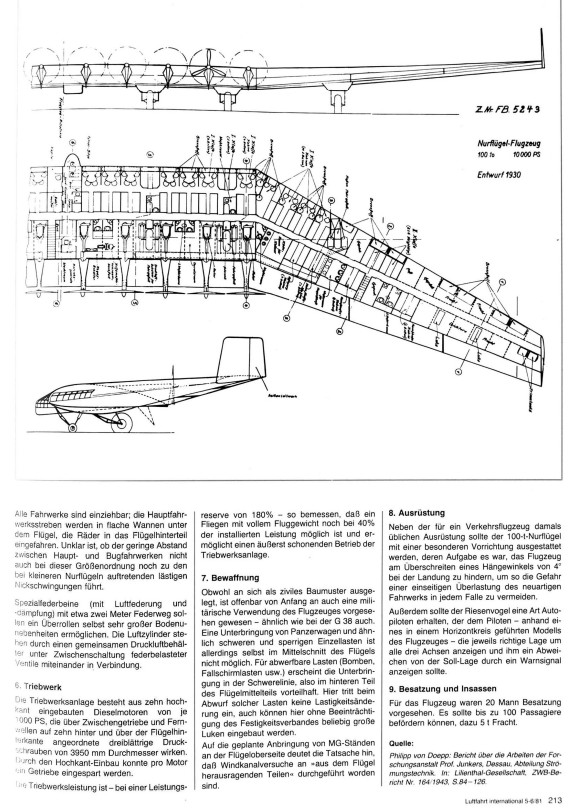

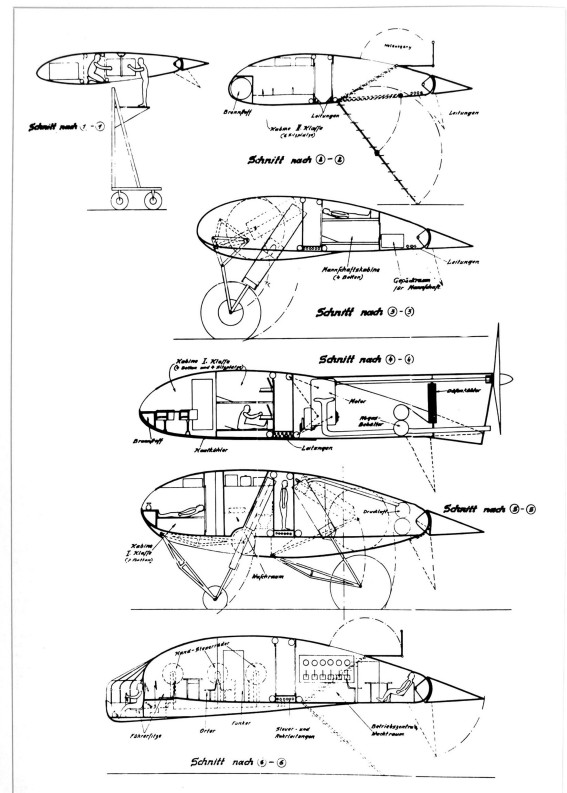

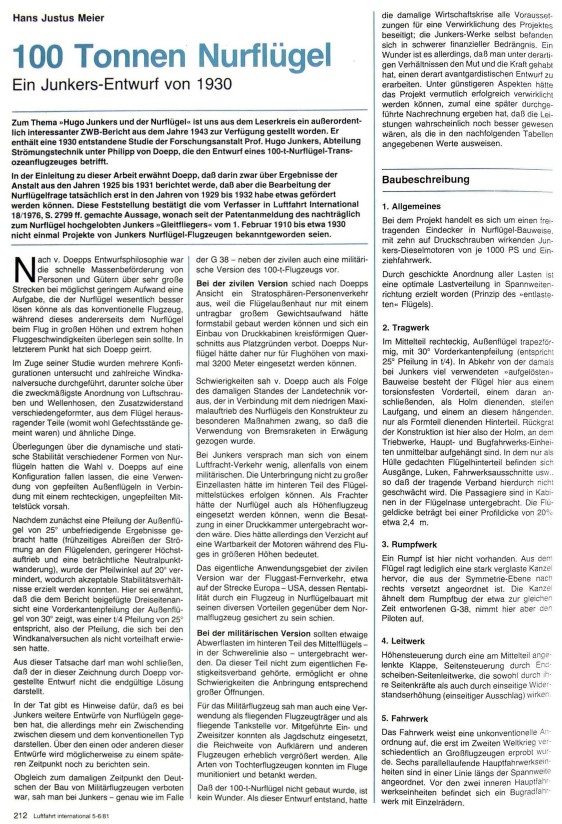

Dimensions
Wingspan 100 m
Central section span 40 m
Wheel track: inner gear group 17.90 m
Middle gear group 33.66 m
Outer gear group 56.80 m
Tire type: medium or low pressure
Tire size: main gear, diameter 2.10 m
nose gear, diameter 0.85 m
Surface Area 1070 m2
Wing including Rudder
Wing Outline: Center Section: Rectangular
Eye Section: Trapezoidal
V-Shape: Center Section
Eye Section (Underside) 5°
Sweep-Shape: Eyewing in t/4 25°
Root Depth 12,36 m
Wing Depth, Outer Section 5,26 m
Vertical Tail: Depth 5,26 m
Height 4,48 m
Propellers
Rigid propellers 10
Drive: Right-angle gear
Diameter 3,95 m
Number of blades 3
Airframe material: All-metal
Performance
Top ground speed 320 km/h
Speed at lowest glide ratio 194 km/h
Cruise speed (with 5% higher fuel consumption) on the ground 220 km/h
at 3 km altitude 260 km/h
Landing speed at 100 t (in 100 km altitude) 115 km/h
Climb rate 3.15 m/s
Peak altitude: at full throttle and full power 5.7 km
at 50% power and
symmetrical propeller pull 2.3 km
at 50% power and
asymmetrical propeller pull 0.7 km
without fuel 2.8 km
Take-off distance at full throttle at 1 km altitude at continuous engine power and ground friction coefficient of 0.05 560 m
Cruise altitude 3 km
Range (calm) 7000 km
at 118 km/h headwind 3600 km
Wing loading 100 kg/m2
Weight Layout
Wing Structure, including flaps
Spans 6500 kg
Ribs 3000 kg
Skin 7200 kg
Total 16700 kg
Landing Gear and Miscellaneous
Undercarriage 3500 kg
Landing Gear Support 1500 kg
incl. Hulls
Vertical Stabilizers 400 kg
Rods and Servomotors 1200 kg
Launchers including fuel 1600 kg
Compressed Air, Electrical, and 1400 kg
Fire Extinguishing Systems
Control Nacelle and Control Center 300 kg
Control Personnel and Rooms 1200 kg
Total 11100 kg
