Heinkel HE 10
Type
3 - 5 seat reconnaissance floatplane
Engine
1 BMW VI 7,3 Z
Dimensions
Length 13,10 m, height 4,55 m, span 18,40 m, wing area 60,93 m2
Weights
Empty 2450 kg, loaded 4810 kg, 2200 litres fuel in wing tanks
Performance
Max. speed 185 km/h at sea level, cruising speed 160 km/h, service ceiling 4000, climb to 1000 m 12 min., landing speed 106 km/h, endurance 15 h,
range3000 km
Type
Werk.Nr
Registration
History

317
D-1662

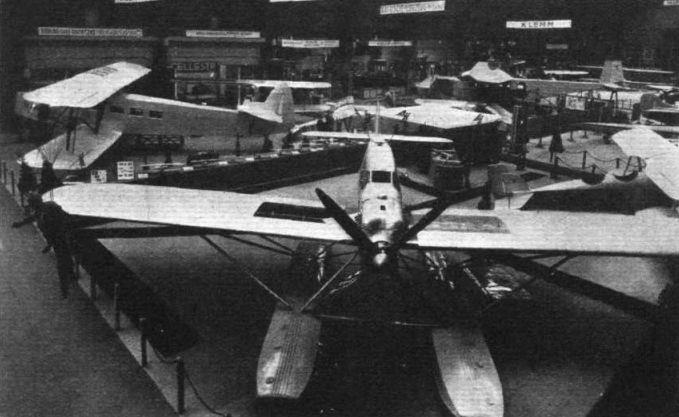

Shown at the ILA at Berlin Oct. 1929. Registration from June 1928, after several modifications used by DVS at
Warnemünde for navigation- and radio training

318

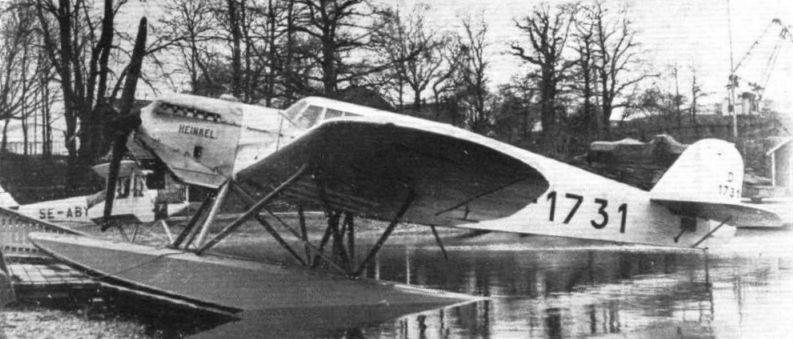

D-1731
Registration from Aug. 1929. Damaged 14/1 1931 during start, engine broke away. The salvage was difficult
because of very tough weather

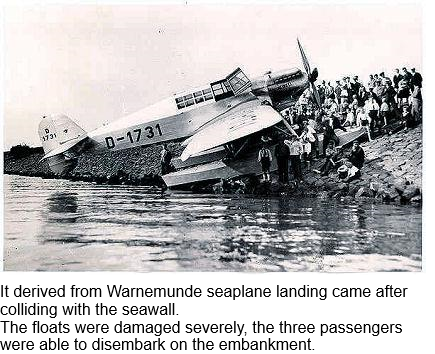

It derived from Warnemunde seaplane landing came after colliding with the seawall.
The floats were damaged severely, the three passengers were able to disembark on the embankment.
The H.E.10 was a long-range reconnaissance seaplane used as a radio trials aircraft for the German Navy. Two aircraft were built, and to cover up the military use, these were registered to the DVS as D-1662 and D-1731 (c/n 318)."
