| Type |
a |

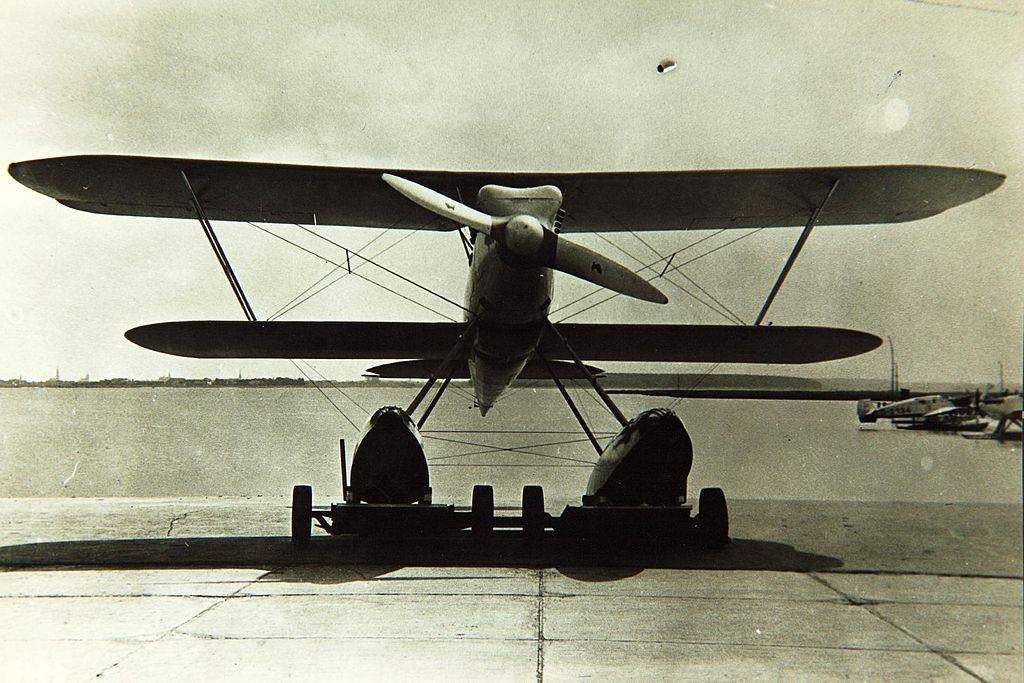

b W seaplane |
| Engine |
1 BMW VI 7,3 Z |
| Dimensions |
Length 8,24 m , height 3,2 m, span upper 11,0 m, lower 8,6 m , wing area 27,2 m2 , |
Length 8,57 m, height 4,6 m, span upper 11,0 m, lower 8,6 m , wing area 27,2 m2 , |
| Weights |
Empty 1470 kg, loaded 1950 kg , max. take off weight , fuel 220 l |
Empty 1510 kg, loaded 1970 kg, max. take off weight fuel 220 l |
| Performance |
Max.. speed at sea level 325 km/h, landing speed 90 km/h, cruising speed , range 700 km, endurance , service ceiling 8000 m , climb to 1000 m 1,4 min., to 2000 m 3,0 min., to 3000 m 5,9 min., |
Max.. speed at sea level 310 km/h, landing speed 100 km/h, cruising speed , range 680 km, endurance , service ceiling 7500 m , climb to 1000 m 1,5 min., to 2000 m 3,9 min., to 3000 m 6,4 min., |
