Type |
Werk.Nr |
Registration |
History |
|
|
D-YBOK |
|
|
|
D-YBIM |
|
Type |
Single seat sportplane |
Engine |
1 ILO FI-2/400 |
Dimensions |
Length 6,0 m , height 1,95 m , span 9,70 m , wing area 9,50 m2 , |
Weights |
Empty 200 kg, loaded , max. take off weight 305 kg |
Performance |
Max.. speed 120 km/h , cruising speed 100 km/h, range 300 km, endurance , service ceiling 3600 m , climb 126 m/min. |

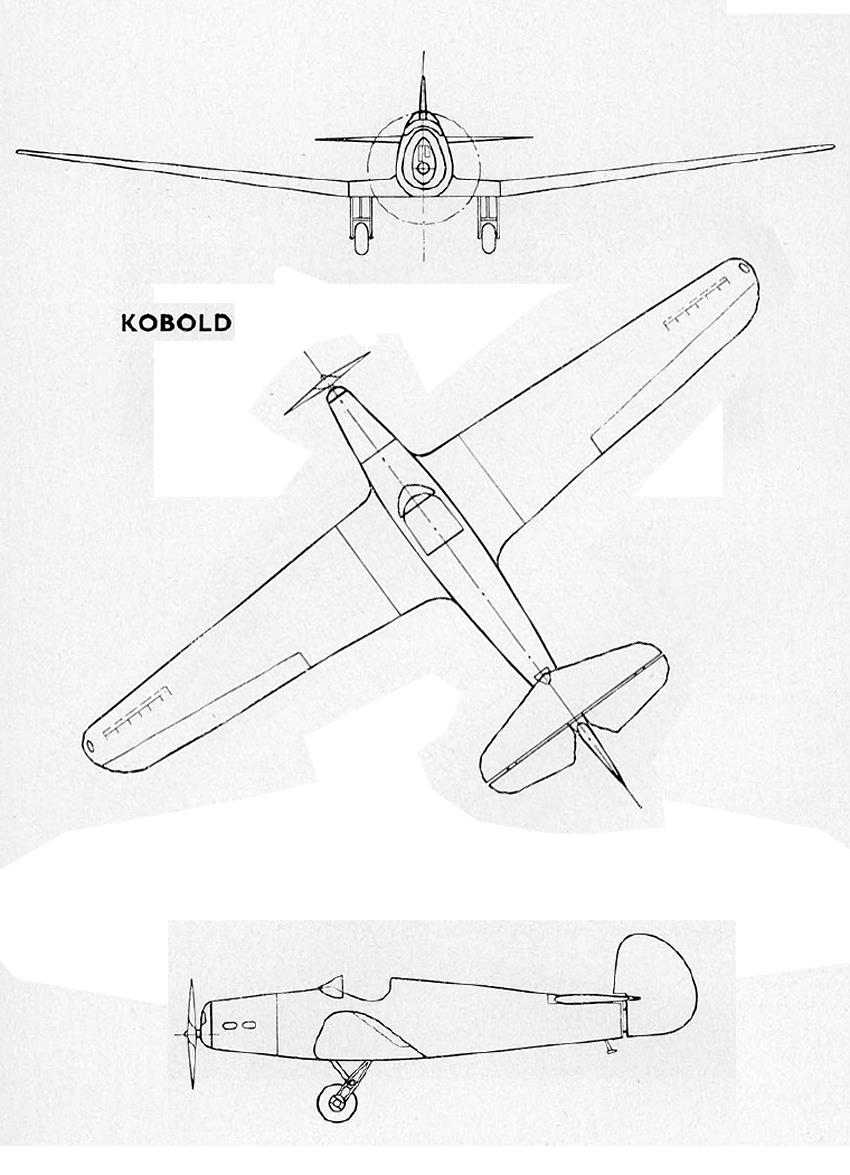

In 1934, a light multi-purpose aircraft, designated Kobold , was built at the Flugtechnische Arbeitsgemeinschaft an der HTL Hamburg (FAG Hamburg) plant . It was a single-seat low-wing aircraft with a reverse gull wing, equipped with a two-cylinder air-cooled ILO Fl-2/400 engine with a power of 22 hp.

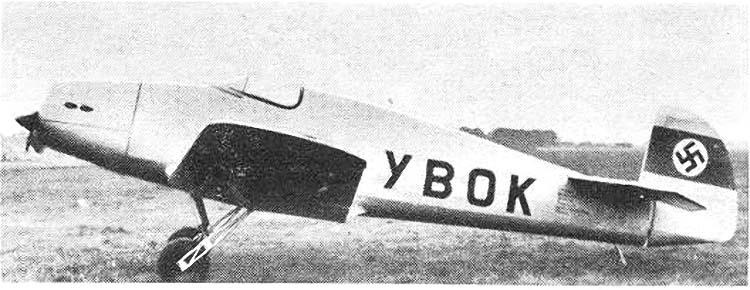

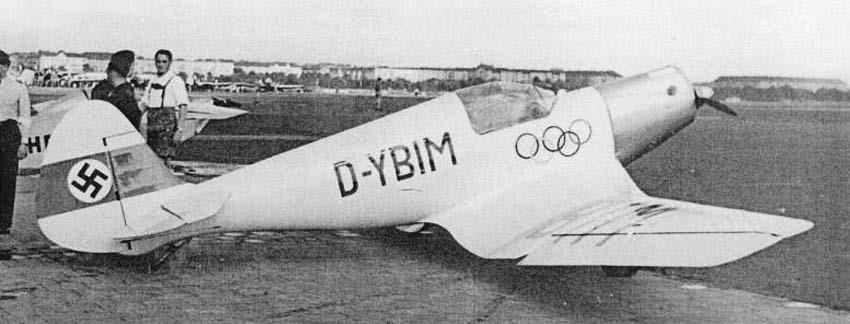

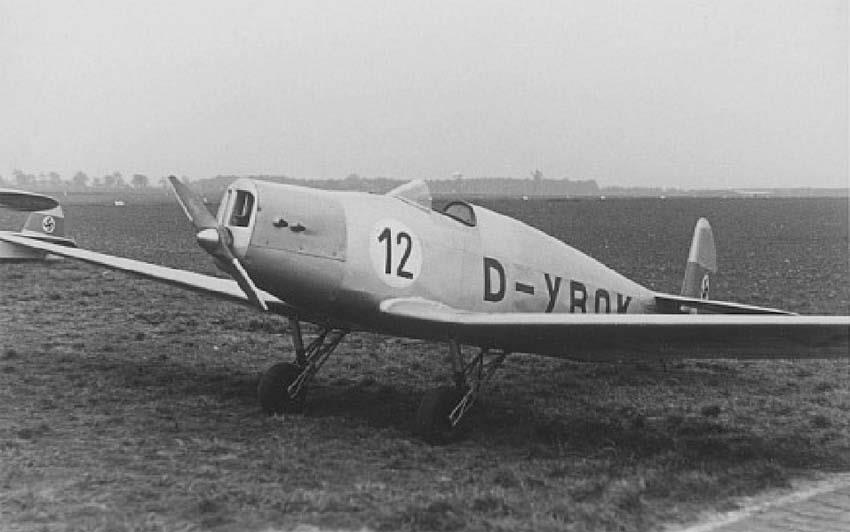

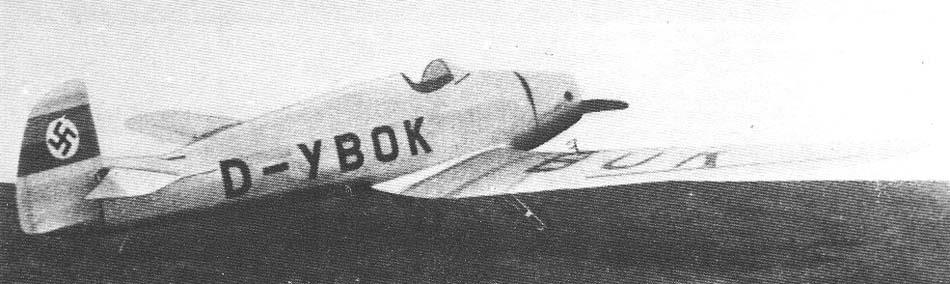

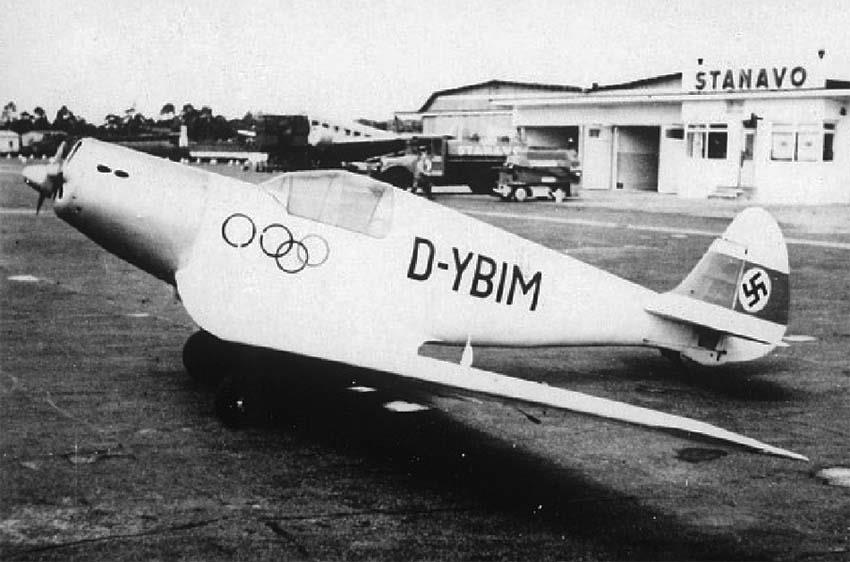

The initial version of the aircraft with an open cockpit received the registration number D-YBOK. Two years later, especially for the Olympia-Großflugtag competition (dedicated to the 1936 Olympic Games in Berlin), the Kobold was modernized with a closed cockpit. In addition to the cockpit, the aircraft has changed its registration to D-YBIM.
