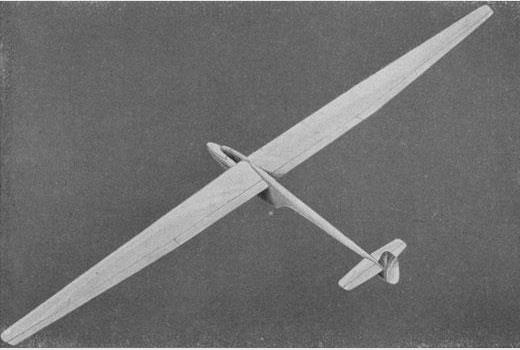

Type | Two seat glider |

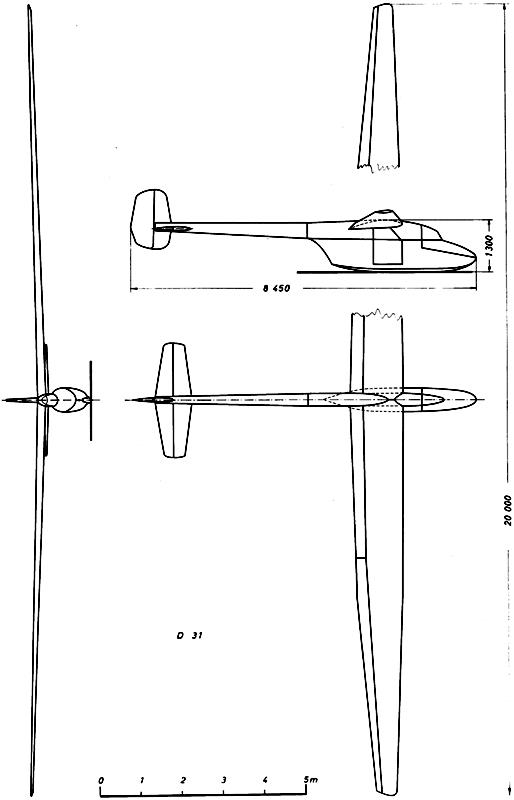

Dimensions | Length 8,45 m, height 1,5 m, span 20,0 m, wing area 20,0 m2, max- width 0,6 m, frontal area 0,52 m2, aspect ratio 20, fin area 1,75 m2, flap area 0,79 m2, stabilizer area 1,25 m2, elevator 0,81 m2, chord at wing root 1,33 m, at the tip 0,44 m, mean average chord 1 m |
Weights | Empty (est.) 180 kg, max. flying weight 350 kg, wing loading 17,5 kg/m2 |
Performance | Max. speed 260 km/h, glide ratio 31 at 67 km/h, min. descent rate 0,56 m/sec. at 60 km/h |
Type | Werk.Nr | Registration | History |
Designed by H. Friedmann in 1937. Profile NACA 4415 to 4412. Fuselage like the D-30 |
