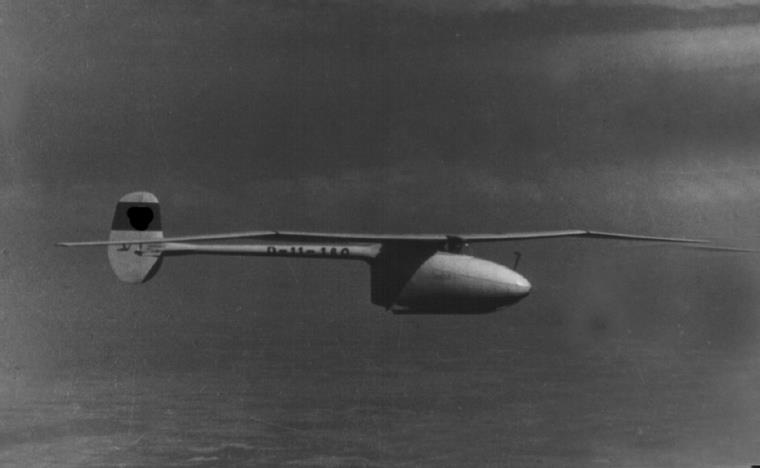

Darmstadt D 30 "Cirrus"
Type
|
Single seat glider
|
Dimensions
|

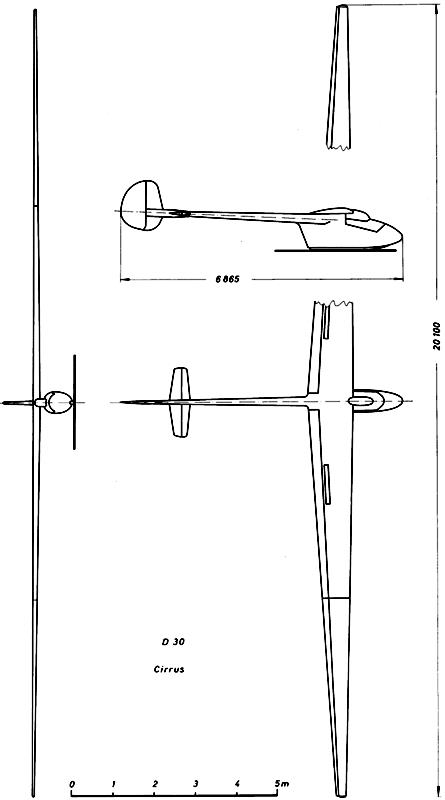

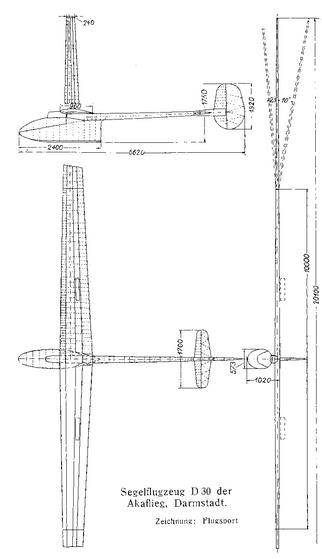

Length 6,62 m, height 1,75 m, span 20,1 m, wing area 12,0 m2, aspect ratio 33,4
|
Weights
|
Empty 190 kg, max. flying weight 265 kg, wing loading 22,1 kg/m2
|
Type
|
Werk.Nr
|
Registration
|
History
|
Designed by R. Schomerus, H. Alt, H.J. Puffert in 1938 Profile NACA 24xx and Göttingen 600 laminar profile
Worldrecord cross country flight Bremen - Lübeck - Bremen 7th July 1938. Won the Championship for Students
|
Vitesse mini--
Vitesse maxi300 km/h
Finesse maxi36 à 72 km/h
Taux de chute mini0.52 m/s à 62 km/h
Nb sièges1
Structure--
Vitesse maxi300 km/h
Finesse maxi36 à 72 km/h
Taux de chute mini0.52 m/s à 62 km/h
Nb sièges1
Structure--

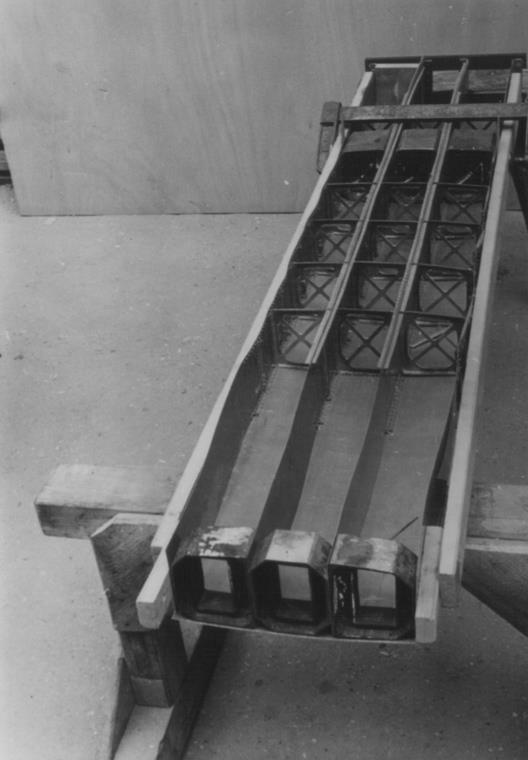

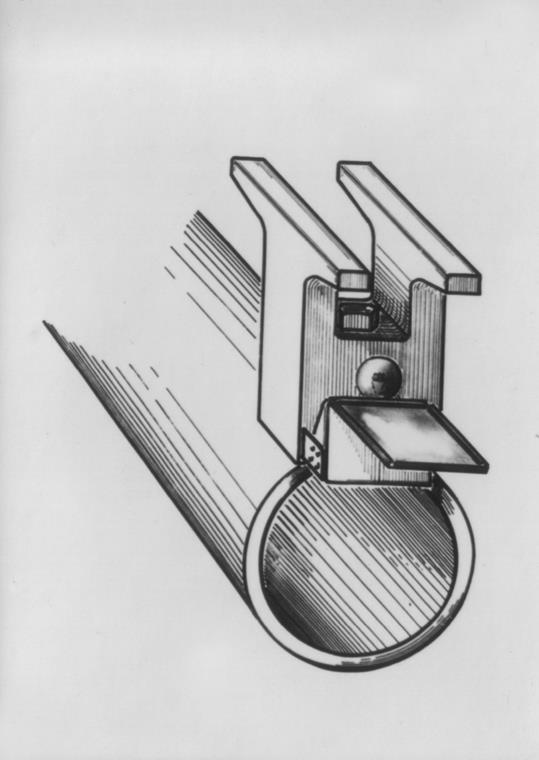

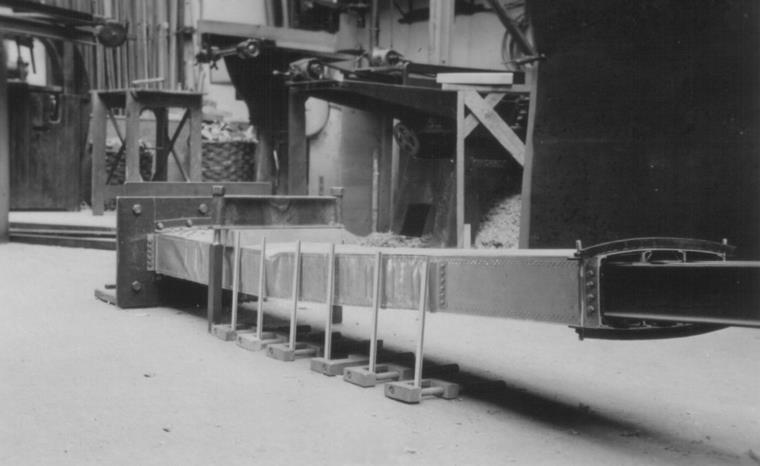

Adjustable dihedral spar Dural, couples Elektron, airbrake
The story summarized July 7, 1938 This aircraft has achieved the world record distance round trip flight with a fixed purpose Bremen-Lübeck-Bremen is 305 km (pilot Bernhard Flinsch).
After reconstruction (and modification of the rear beam) following an accident at Wasserkuppe Flinsch makes a 406 km flight in June 1939.
The story summarized July 7, 1938 This aircraft has achieved the world record distance round trip flight with a fixed purpose Bremen-Lübeck-Bremen is 305 km (pilot Bernhard Flinsch).
After reconstruction (and modification of the rear beam) following an accident at Wasserkuppe Flinsch makes a 406 km flight in June 1939.
