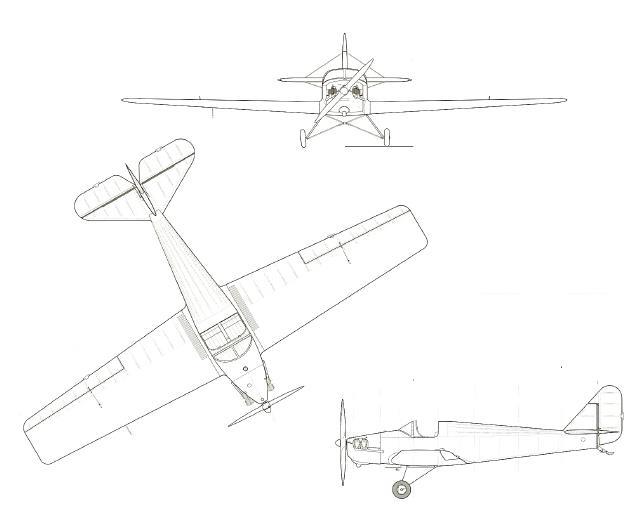

A.V.I.A. FL. 3
The Avia FL.3 (also later known as the Lombardi FL.3) was an Italian two-seat cabin monoplane designed and built by Anonima Vercellese Industria Aeronautica (AVIA). The prototype first flew in 1938, powered by a Czech 45hp Persy II engine and the new plane fulfilled the specifications issued by the Italian Air Ministry for a low cost aircraft to be used in Italian Aero Clubs. Series productions began shortly afterwards but using the new 60hp CNA D/IVS engine. The Air Ministry then selected the aircraft (now know as the FL.3) as an "ab inito" trainer for the Regia Aeronautica. In all 355 FL.3 were built of which 20 were ordered by the Croatian Air Force. During the WWII the German seized 250 FL.3 and used them as training and comunications Aircraft. At least 145 served in april 1944 with the training schools
Type Two-seat trainer

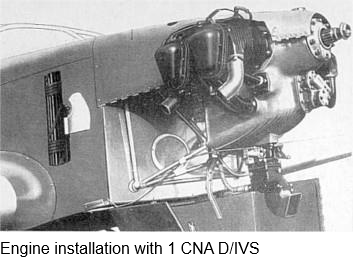

Engine 1  CNA D/IVS
Dimensions Length 6,37 m, height 1,71 m, span 9,85 m, wing area 14,35 m2
Weights Empty 300 kg, flying weight 515 kg
Performance Max. speed 195 km/h, stall speed 72 km/h, range 597 km, service ceiling 5000 m, climb to 3000 m 30 min., landing run 130 m, starting run 200 m

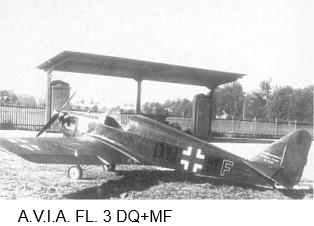

A.V.I.A. FL. 3 DQ+MF
Flugzeugführerschule A/B 2
Flugzeugführerschule A/B 14
Flugzeugführerschule A/B 72
Flugzeugführerschule A/B 114
Flugzeugführerschule A/B 115
Flugzeugführerschule A/B 118
Flugzeugführerschule A/B 121
Flugzeugführerschule A/B 123
Flugzeugführerschule A/B 125
