Type | 3 seat reconnaissance plane used after WW I by the Luftbild GmbH |
Engine | 1 Benz Bz III, Mercedes D.III, Maybach Mb.III ??? |

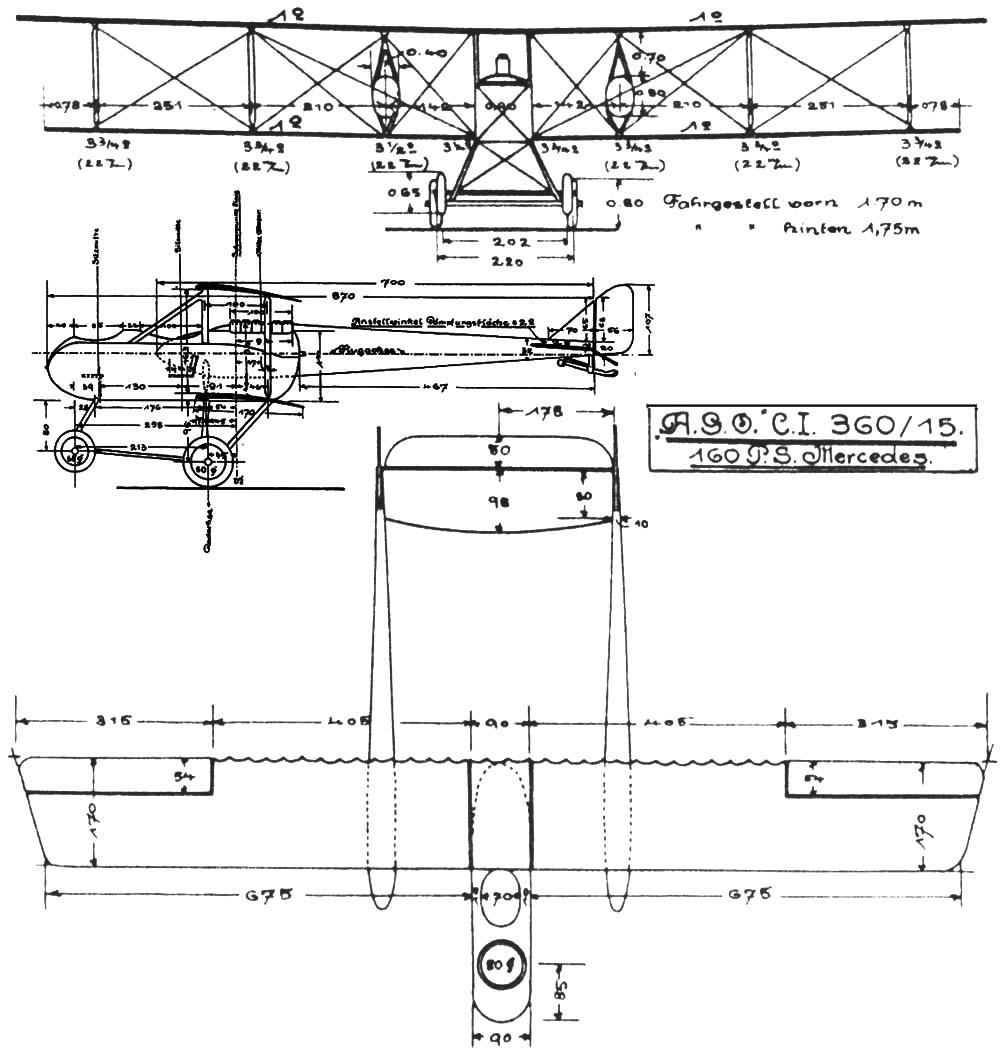

Dimensions | Length 9,30 m, height 3,10 m, span upper 15,10 m, span lower 14,34 m, chord upper 1,70 m, chord lower 1,70 m, dihedral upper and lower 2 º gap 1,74 m,wing area 47,6 m2, track rear 2,20 m |
Weights | Empty 960 kg, flying weight 1495 kg |
Performance | Max. speed 130 km/h, climb to 1000 m 9,5 min., to 2000 m 24 min., to 3000 m 45 min. |
Type | Werk.Nr | Registration | History |
D-118, LB 2 | "Sägefisch". In 1919 used by the Luftbild G.m.b.H., Berlin |
